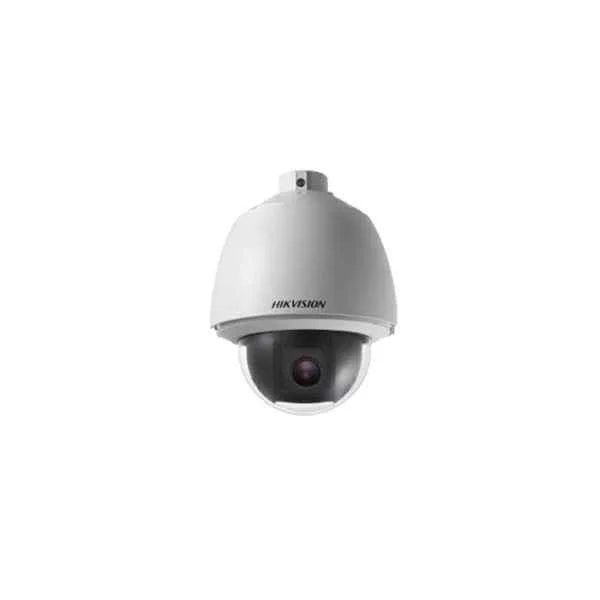

DS-2DE5225W-AE

DS-2DE5225W-AE Specification

Camera

Image Sensor

1/2.8" HD progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

Signal System

PAL/NTSC

Minimum Illumination

Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001Lux @(F1.6, AGC ON)

White Balance

Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

AGC

Auto/Manual

BLC

ON/OFF

HLC

Support

Smart defog

Support

WDR

120dB

Shutter Time

1-1/10,000s

Day& Night

ICR

Digital Zoom

16X

Privacy Mask

24 programmable privacy masks; optional multiple colors and mosaics

Auto Focus

Auto / Semi-automatic / Manual

Lens

Focal Length

4.8 mm to 120 mm, 25 optical zoom

Zoom Speed

Approx. 3.6 s (optical lens, wide-tele)

Field of View

Horizontal field of view: 57.6° to 2.5° (Wide-Tele)

Vertical field of view: 34.4° to 1.4° (Wide-Tele)

Diagonal field of view: 64.5° to 2.9° (Wide-Tele)

Minimum Working Distance

10-1,500mm(Wide-Tele)

Aperture Range

F1.6 to F3.5

Pan & Tilt

Pan Range

360°endless

Pan Speed

Configurable, from 0.1°/s to 250°/s, Preset speed: 300°/s

Tilt Range

-5°~90° (Auto Flip )

Tilt Speed

Configurable, from 0.1°/s to 150°/s

Preset Speed: 200°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

300

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Support

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Position Display

ON/OFF

Alarm

Alarm Input

2

Alarm Output

1

Input & Output

Audio Input

1-ch audio input

Audio Output

1-ch audio output

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution

19201080

Main Stream

50Hz:25fps (19201080,1280960,1280720), 50fps (1280960,1280720) ;

60Hz:30fps(19201080,1280960,1280720), 60fps (1280960,1280720)

Sub Stream

50Hz: 25fps(704576, 640x480,352288); 60Hz: 30fps(704480, 640x480,352240)

Third Stream

50Hz: 25fps(19201080, 1280960, 1280720, 704576, 640x480,352288)

60Hz: 30fps(19201080, 1280960, 1280720, 704576, 640x480,352288)

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

ROI encoding

Support 4 areas with adjustable levels

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode

OFF/Audio input/Audio output

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View

Up to 20 channels

Three-Stream

Support

Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

User/Host

Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW), host authentication (MAC address)

Client GUI

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

General

Language

English

Power Supply

12VDC, PoE+

Power Consumption

Max.: 22 W

Working Temperature/Humidity

-30 „ƒ-65„ƒ(-22„‰-149„‰)(outdoor)

90% or less

Protection Level

IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Mounting

Various mounting modes optional

Material

ADC 12, PC+ABS, PC/PMMA

Dimensions

Φ 220 mm 280 mm (Φ 8.66" 11.02")
