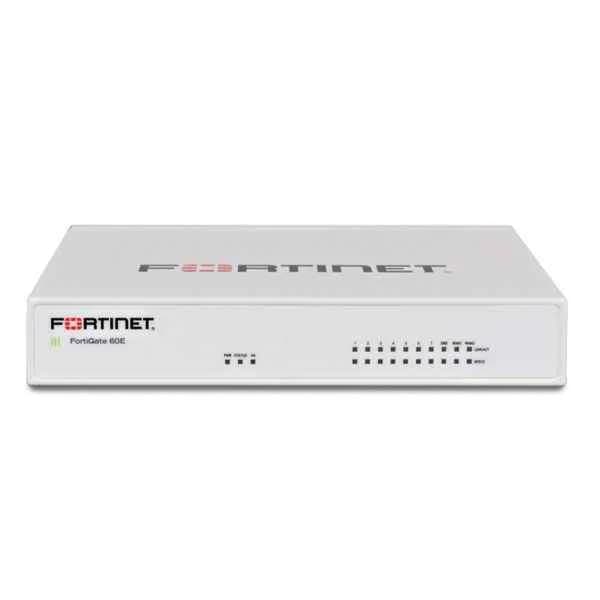

FortiGate-60E-DSLJ, Hardware plus 24x7 FortiCare and FortiGu...
FEATURED DEAL
Name:
FG-60E-DSLJ-BDL-980-DD
- Description:
- FortiGate-60E-DSLJ, Hardware plus 24x7 FortiCare and FortiGuard Enterprise Protection
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Fortinet
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
FG-60E-DSLJ-BDL-980-DD Overview
FG-60E-DSLJ-BDL-980-DD is a high-performance rack-mounted hardware appliance engineered for enterprise and branch office deployments. This device delivers robust firewall and unified threat management capabilities with throughput capacity reaching up to 3 Gbps and is equipped with a balanced port configuration including 4 LAN ports and 2 WAN ports with SFP support for enhanced connectivity. It features a redundant AC power supply that ensures uninterrupted operation and supports a wide range of security services such as IPS, antivirus, web filtering, application control, and VPN.
The FG-60E-DSLJ-BDL-980-DD also offers versatile management options including Cloud, CLI, GUI, and SNMP for flexible deployment in various use cases. Designed for scalability and high availability with active-passive clustering, it is ideal for SMB, enterprise, branch, and cloud environments. With integrated threat management, extensive logging, monitoring capabilities, and high concurrent session support, this appliance provides a comprehensive network security solution.
FG-60E-DSLJ-BDL-980-DD price is is available on request. Get immediate quote.
Request bulk order quote for FG-60E-DSLJ-BDL-980-DD for additional pricing. Browse the full Fortinet Fortigate Ngfw Entry-Level Series series or explore all Fortinet products.
FG-60E-DSLJ-BDL-980-DD Specifications
- Product Type
- Firewall Appliance
- Architecture
- Rack-mount
- Deployment Type
- Enterprise / Branch Office
- Use Case
- VPN / Secure Access / UTM
- Firewall Layer Supported
- Layer 7
- Power Source
- AC Power Supply
- Redundant Power Supply Supported
- Yes
- Firewall Throughput
- 3 Gbps
- Threat Protection Throughput
- 2.5 Gbps
- IPS Throughput
- 1.5 Gbps
- VPN Throughput
- 1.2 Gbps
- Supported Applications
- 150
- Centralized Configuration & Reporting
- Yes
- Feature
- Integrated Threat Management
- Concurrent Sessions
- 500000
- Maximum Concurrent Sessions
- 500000
- Users/Nodes
- Unlimited
- Integrated I/O
- 8
- New Sessions Per Second
- 50000
- Supported VPN Types
- IPSec / SSL VPN
- Routing Protocols Supported
- OSPF / BGP / RIP / Static Routing
- Security Services
- Antivirus / Web Filtering / Application Control / IPS / VPN
- High Availability
- Active-Passive
- Interfaces
- RJ-45 / SFP
- WAN Ports
- 2 WAN
- LAN Ports
- 4 LAN Ports
- Switch Ports
- Yes
- POE Ports
- No
- Management Options
- Cloud / CLI / GUI / SNMP
- Logging & Monitoring
- Built-in / Syslog
- Firewall Policies Supported
- 1000
- Users Supported
- Unlimited
- Memory
- 8 GB
- Flash Storage
- 128 GB
- Expansion Slots
- SFP
- Form Factor
- Rack-mount
- Rack Units
- 1 RU
- Device Type
- NGFW
- Product Name
- FG-60E-DSLJ-BDL-980-DD
- Height
- 1.75 inches
- Width
- 17 inches
- Depth
- 12 inches
- Weight
- 15 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table

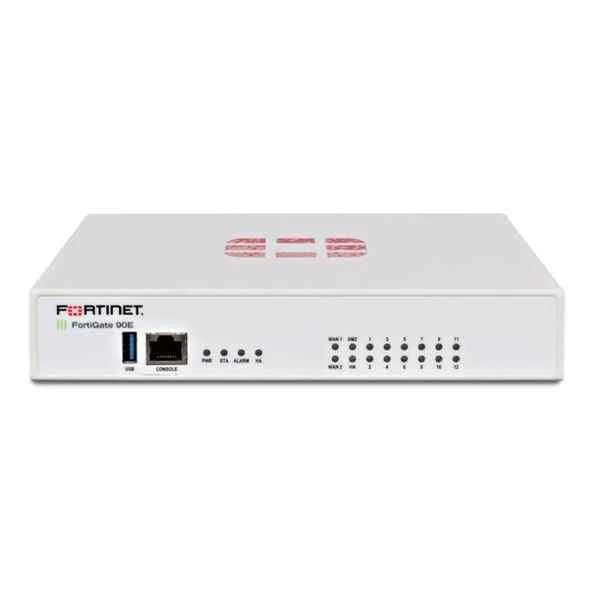

| FG-60E-DSLJ-BDL-980-DD |  FG-90E |  FC-10-00E81-112-02-DD |  FC-10-0052E-175-02-DD |  FC-10-0060E-928-02-DD | |
|---|---|---|---|---|---|
| Architecture | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Centralized Configuration & Reporting | Yes | Centralized | Yes | Yes | Yes |
| Concurrent Sessions | 500000 | 500000 | 500,000 | 500,000 | 500000 |
| Deployment Type | Enterprise / Branch Office | Enterprise | Enterprise / Branch Office | Enterprise / Branch Office | Enterprise / Branch Office / Cloud |
| Depth | 12 inches | 14 inches | 12 inches | 2.5 inches | 18 inches |
| Device Type | NGFW | NGFW | NGFW | NGFW | NGFW |
| Expansion Slots | SFP | SFP | SFP | SFP | SFP |
| Feature | Integrated Threat Management | Next-Generation Threat Protection | Advanced threat protection | Next-Generation Firewall | Advanced threat protection |
| Firewall Layer Supported | Layer 7 | Layer 7 | Layer 3 / Layer 4 / Layer 7 | Layer 7 | Layer 7 |
| Firewall Policies Supported | 1000 | 200 | 1000 | 500 | 200 |
| Firewall Throughput | 3 Gbps | 2 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
| Flash Storage | 128 GB | 128 GB | 128 GB SSD | 128 GB | 128 GB |
| Form Factor | Rack-mount | 1 RU | 1 RU | 1 RU | 1 RU |
| Height | 1.75 inches | 1.75 inches | 1.75 inches | 1.75 inches | 1.75 inches |
| High Availability | Active-Passive | Active-Passive | Active-Passive | Active-Passive | Active-Passive |
| IPS Throughput | 1.5 Gbps | 0.8 Gbps | 5 Gbps | 5 Gbps | 5 Gbps |
| Integrated I/O | 8 | 4 | 4 | 4 | 4 |
| Interfaces | RJ-45 / SFP | RJ-45 / SFP | RJ-45 / SFP+ | RJ-45 / SFP | RJ-45 / SFP |
| LAN Ports | 4 LAN Ports | 8 LAN Ports | 4 LAN Ports | 8 LAN Ports | 8 LAN Ports |
| Logging & Monitoring | Built-in / Syslog | Built-in / Syslog | Built-in / Syslog | Built-in / Syslog | Built-in / Syslog |
| Management Options | Cloud / CLI / GUI / SNMP | Cloud / CLI / GUI / Centralized / SNMP | Cloud / CLI / GUI / SNMP | Cloud / CLI / GUI / SNMP | Cloud / CLI / GUI / Centralized |
| Maximum Concurrent Sessions | 500000 | 750000 | 1,000,000 | 1,000,000 | 1000000 |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB | 8 GB |
| New Sessions Per Second | 50000 | 15000 | 50,000 | 50,000 | 20000 |
| POE Ports | No | No | No | No | No |
| Power Source | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply |
| Product Name | FG-60E-DSLJ-BDL-980-DD | FG-90E Next-Generation Firewall | FC-10-00E81-112-02-DD Next-Generation Firewall | FC-10-0052E-175-02-DD | FC-10-0060E-928-02-DD Next Generation Firewall |
| Product Type | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance |
| Rack Units | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU |
| Redundant Power Supply Supported | Yes | Yes | Yes | Yes | Yes |
| Routing Protocols Supported | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / Static Routing |
| Security Services | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN |
| Supported Applications | 150 | 120 | 50 | 256 | 150 |
| Supported VPN Types | IPSec / SSL VPN | IPSec / SSL VPN | IPSec / SSL VPN / L2TP | IPSec / SSL VPN | IPSec / SSL VPN |
| Switch Ports | Yes | Yes | Yes | No | Yes |
| Threat Protection Throughput | 2.5 Gbps | 1.5 Gbps | 8 Gbps | 6 Gbps | 8 Gbps |
| Use Case | VPN / Secure Access / UTM | UTM | VPN / Secure Access / UTM | VPN / Secure Access / UTM | VPN / Secure Access / UTM |
| Users Supported | Unlimited | 5000 | N/A | N/A | Unlimited |
| Users/Nodes | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| VPN Throughput | 1.2 Gbps | 0.9 Gbps | 6 Gbps | 4 Gbps | 6 Gbps |
| WAN Ports | 2 WAN | 2 WAN | 2 WAN | 2 WAN | 2 WAN |
| Weight | 15 lbs | 15 lbs | 15 lbs | 15 lbs | 15 lbs |
| Width | 17 inches | 17.5 inches | 17.5 inches | 17 inches | 17 inches |
Reviews & Ratings
O
Oscar Bennett
5
Enterprise protection bundle works smoothly.
N
Neil Thornton
5
Stable connectivity and easy management.
R
Ryan Fletcher
4
Good solution for branch offices with DSL links.
E
Elliot Barnes
5
Consistent performance and uptime.
Questions & Answers
What is the FortiGate-60E-DSLJ BDL-980-DD bundle?
The FortiGate-60E-DSLJ BDL-980-DD bundle includes a FortiGate-60E-DSLJ security appliance plus 24x7 FortiCare support and FortiGuard Enterprise Protection for advanced threat prevention.
What security features are included with FortiGuard Enterprise Protection?
FortiGuard Enterprise Protection provides firewall, IPS, antivirus, web filtering, application control and anti-malware services to safeguard networks against known and zero-day threats.
What is the firewall throughput of the FortiGate-60E-DSLJ?
The FortiGate-60E-DSLJ delivers up to 3 Gbps firewall throughput, ensuring high-performance packet processing for small and medium-sized networks.
How many network interfaces does the FortiGate-60E-DSLJ provide?
The FortiGate-60E-DSLJ offers 12 x GE RJ45 ports, one GE RJ45 WAN/DMZ port, and one GE SFP WAN port for versatile connectivity options.
Does the FortiGate-60E-DSLJ support VPN connectivity?
Yes, it supports up to 200 IPsec VPN tunnels and 10 SSL VPN users, enabling secure site-to-site and remote-access connections.
How do I activate 24x7 FortiCare and FortiGuard subscriptions?
Log in to your Fortinet Support Account, navigate to Asset Management, select your FortiGate-60E-DSLJ serial number, and apply the provided activation codes.
What are the benefits of 24x7 FortiCare support?
FortiCare 24x7 support delivers around-the-clock hardware replacement, firmware updates, expert technical assistance and expedited RMA to minimize downtime.
How often are firmware updates released?
Fortinet generally releases firmware updates quarterly, with critical security patches issued as needed to address emerging threats.
Can I manage the FortiGate-60E-DSLJ via FortiCloud?
Yes, the FortiGate-60E-DSLJ can be centrally managed through FortiCloud, offering cloud-based configuration, monitoring and analytics.
Does the appliance support high availability (HA)?
Yes, it supports active-passive HA, providing session sync and automatic failover to ensure continuous network protection.
What warranty coverage is included with my FortiGate-60E-DSLJ?
The device includes a one-year limited hardware warranty, which covers hardware defects and replacement services under FortiCare terms.
What type of DSL connectivity does the DSLJ model support?
The DSLJ model features an integrated VDSL2/ADSL2+ modem, enabling direct broadband connectivity without an external DSL gateway.
What is the recommended deployment size for this device?
The FortiGate-60E-DSLJ is ideal for small to medium-sized businesses requiring up to 50 concurrent users with enterprise-grade security.
Is the FortiGate-60E-DSLJ compatible with third-party network devices?
Yes, it interoperates with standard IEEE 802.3 Ethernet devices and supports industry protocols for seamless integration into mixed-vendor environments.
How do I perform a firmware upgrade on the FortiGate-60E-DSLJ?
Download the latest firmware from the Fortinet Support site, upload it via the web GUI under System > Firmware, and follow the on-screen upgrade prompts.
