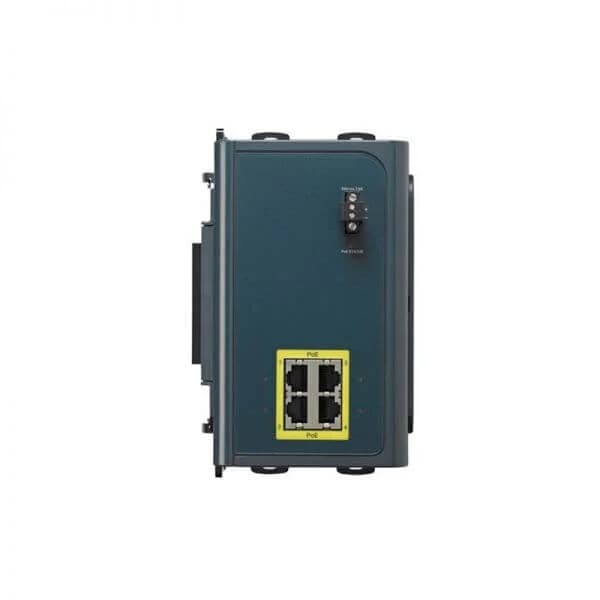

Name: Cisco IE 3000 Expansion Module, 4 POE 10/100
Brand: Cisco
SKU: IEM-3000-4PC=
Price: 661.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the Cisco IE 3000 Expansion Module, 4 PoE 10/100 (IEM-3000-4PC=)?

Accepted Answer

The IEM-3000-4PC= is an industrial-grade expansion module for Cisco IE 3000 switches, providing four additional 10/100 Mbps PoE ports to power IP cameras, sensors and wireless access points.

Question 2

Which Cisco IE 3000 switch models support the IEM-3000-4PC=?

Accepted Answer

The expansion module is compatible with all Cisco IE 3000 fixed-port models with an available expansion slot, including IE 3000-8T4G and IE 3000-16P-4G.

Question 3

How many PoE ports and what power budget does the module provide?

Accepted Answer

The module adds four 10/100 Mbps PoE ports with a total power budget of 60 W, supporting up to 15.4 W per port.

Question 4

Which PoE standards are supported by the IEM-3000-4PC=?

Accepted Answer

It supports IEEE 802.3af (PoE) for up to 15.4 W per port and is backward-compatible with IEEE 802.3at devices at reduced power.

Question 5

Can the expansion module deliver full 10/100 Mbps throughput on all ports?

Accepted Answer

Yes. Each PoE port operates at full 10/100 Mbps wire speed, ensuring reliable connectivity for bandwidth-sensitive applications.

Question 6

What is the procedure to install the IEM-3000-4PC=?

Accepted Answer

Power down the IE 3000 switch, insert the module into the expansion slot, secure the captive screws, then power up. The switch auto-detects and configures the module.

Question 7

How do I configure PoE settings for the additional ports?

Accepted Answer

Use the Cisco CLI or web UI: navigate to the interface range of the new ports and apply "power inline static max 15400" for per-port power limits and priority settings.

Question 8

Is PoE power managed centrally or per port?

Accepted Answer

Power is managed per port, allowing individual prioritization, power negotiation and port shutdown to ensure reliable delivery to critical devices.

Question 9

What environmental specifications does the module meet?

Accepted Answer

It meets industrial temperature ratings from –40 °C to +75 °C, IEC 60068 shock and vibration standards, and conforms to IP30 chassis ingress protection.

Question 10

Does the module affect the switch’s redundancy or ring protocols?

Accepted Answer

No. The expansion module retains support for Cisco REP and Media Redundancy Protocol (MRP), maintaining network resilience and fast ring reconvergence.

Question 11

What are the physical dimensions and weight of the IEM-3000-4PC=?

Accepted Answer

The module measures 119 × 30 × 104 mm (W×H×D) and weighs 0.25 kg, fitting seamlessly into the IE 3000’s expansion slot form factor.

Question 12

Which software image is required for full feature support?

Accepted Answer

Install Cisco IOS LL Lite 15.2(4)E3 or later for full PoE management, interface configuration and advanced security features on the expansion module.

Question 13

Can I hot-swap the IEM-3000-4PC=?

Accepted Answer

No. To avoid potential damage, you must power down the IE 3000 switch before installing or removing the expansion module.

Question 14

What certifications and compliance standards does it hold?

Accepted Answer

The module is UL 60950-1, IEC 61000-6-2/4, CE, FCC Class A and RoHS compliant, ensuring reliability in industrial and ruggedized environments.

Question 15

What warranty and support options are available?

Accepted Answer

Cisco offers a 5-year limited hardware warranty and 24/7 TAC support. Optional Smart Net Total Care provides expedited replacement and online resources.

Question 16

What are common use cases for the Cisco IE 3000 Expansion Module, 4 PoE 10/100?

Accepted Answer

Ideal for expanding PoE capacity in factory automation, smart buildings and outdoor surveillance, powering cameras, access points and IoT sensors without extra switches.

	IEM-3000-4PC=	IEM-3000-4SM=	IEM-3000-8SM=	IEM-3300-8T=	IEM-3300-14T2S=
Compatibility	Cisco / Juniper / Arista / Dell / HP	Cisco, Juniper, Arista, Dell, HP	Routers, Switches, Servers	Cisco / Juniper / Arista / Dell / HP	Routers, Switches, Servers
Connector Type	SFP+	SFP+	SFP+	RJ-45	RJ-45 / SFP+
Data Rate	10Gbps	10G	10Gbps	1Gbps	1Gbps (Copper) / 10Gbps (Fiber)
Depth	N/A	0.5 inches	N/A	N/A	N/A
Expansion Slots	N/A	N/A	N/A	PCIe	N/A
Form Factor	PCIe	PCIe	PCIe	PCIe	PCIe
Height	N/A	1.0 inches	N/A	N/A	N/A
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Interface Ports	SFP+	SFP+	SFP+	Ethernet	14 x RJ-45, 2 x SFP+
Max Speed	10Gbps	10Gbps	10Gbps	1Gbps	10Gbps
Module Type	Ethernet	Ethernet	SFP+	Ethernet	Ethernet
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	15W	15W	N/A	N/A	N/A
Product Name	IEM-3000-4PC=	IEM-3000-4SM=	IEM-3000-8SM=	IEM-3300-8T=	IEM-3300-14T2S=
Product Type	Network Module / Network Card	Network Module / Network Card	Network Module	Network Module / Network Card	Network Card
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Features	Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS	Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS	Auto-negotiation, Jumbo Frames, QoS
Supported Protocols	TCP/IP	TCP/IP, iSCSI	TCP/IP	TCP/IP	TCP/IP
Weight	N/A	0.7 lbs	N/A	N/A	N/A
Width	N/A	3.0 inches	N/A	N/A	N/A
