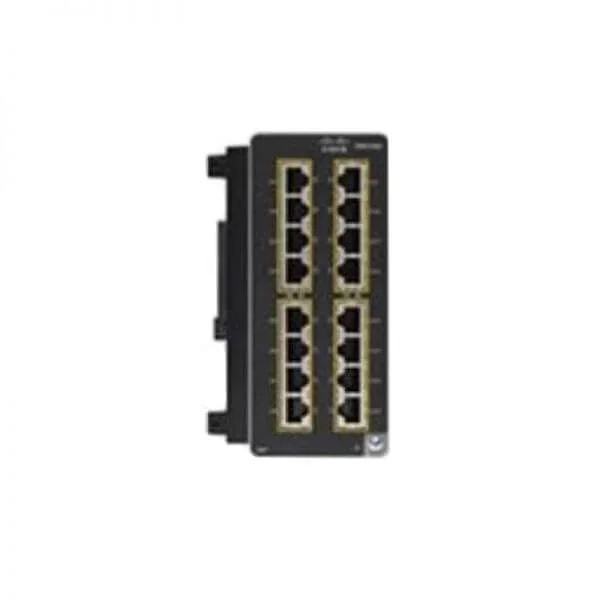

Name: CATALYST IE3300 RUGGED 16PORT GE POE+ EXP MODULE EOS 6/20
Brand: Cisco
SKU: IEM-3300-16P=
Price: 4262.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the Cisco Catalyst IE3300 Rugged 16-Port GE PoE+ Expansion Module?

Accepted Answer

The Cisco Catalyst IE3300 IEM-3300-16P= is a field-installable expansion module that adds 16 Gigabit Ethernet PoE+ ports to the IE3300 switch, delivering up to 30 W per port and seamless integration with IOS XE 6.20.

Question 2

Which devices are compatible with the IEM-3300-16P= module?

Accepted Answer

The IEM-3300-16P= module is compatible exclusively with the Cisco Catalyst IE3300 Industrial Ethernet switch chassis running IOS XE 6.20 or later.

Question 3

What is the total PoE+ power budget of this expansion module?

Accepted Answer

This module provides a total PoE+ power budget of 370 W, supporting up to 30 W per port to power IP cameras, wireless access points, and other PoE devices.

Question 4

What operating temperature range does the IE3300-16P module support?

Accepted Answer

The IE3300-16P module operates reliably in industrial environments from –40 °C to 75 °C (–40 °F to 167 °F).

Question 5

How do I install the IEM-3300-16P= on my IE3300 switch?

Accepted Answer

To install, power down the IE3300 chassis, slide the PoE+ module into an available expansion bay until it clicks, then power up; the switch auto-detects and integrates the module.

Question 6

Does the module require additional licensing?

Accepted Answer

No additional license is required; the IEM-3300-16P= is automatically supported under the IE3300’s built-in IOS XE feature set (6.20).

Question 7

What management features are available for the PoE+ module?

Accepted Answer

You can manage PoE ports via Cisco DNA Center, CLI, SNMP or RESTCONF to configure power thresholds, scheduling, and real-time monitoring.

Question 8

What form of redundancy and high availability does this module support?

Accepted Answer

The IE3300 with the PoE+ expansion module supports Cisco StackWise® redundancy, link aggregation, and nonstop forwarding with Stateful Switchover (NSF/SSO).

Question 9

Can I use standard SFP modules in addition to the PoE+ ports?

Accepted Answer

Yes, the IE3300 chassis retains two SFP uplink slots for fiber or copper SFP modules, independent from the PoE+ expansion module.

Question 10

Which certifications and safety standards does the PoE+ module meet?

Accepted Answer

The IEM-3300-16P= holds UL 61010-2-201, EN 50121-4, and IEC 61373 certifications, ensuring compliance for hazard avoidance and railway applications.

Question 11

What is the maximum switching capacity when using the PoE+ module?

Accepted Answer

With the 16-port PoE+ module, the IE3300 chassis offers up to 56 Gbps switching capacity and <5 µs latency under full load.

Question 12

Are there any recommended accessories for optimal installation?

Accepted Answer

Cisco recommends using the IE-BASE-KIT mounting kit for secure DIN-rail or panel mounting and the AC-48-57ST-XV2 power supply for stable PoE+ power delivery.

Question 13

What are the typical use cases for the IE3300 with PoE+ expansion?

Accepted Answer

Ideal for smart manufacturing, transportation, utilities, and oil & gas, this module powers edge devices like IP cameras, sensors and wireless APs in harsh environments.

Question 14

How do I monitor PoE power consumption per port?

Accepted Answer

Use the Cisco IOS XE CLI command 'show power inline' or the Cisco DNA Center dashboard to view per-port consumption, power budget, and port status.

Question 15

What warranty and support options are available?

Accepted Answer

The IEM-3300-16P= comes with a limited lifetime warranty and 24/7 Cisco TAC support; extended service contracts are available through Cisco SMARTnet®.

Question 16

How does the PoE+ module improve network scalability?

Accepted Answer

By adding 16 PoE+ ports in a compact module, you can expand device connectivity without increasing rack space or deploying separate midspan injectors.

	IEM-3300-16P=	IEM-3000-8FM=	IEM-3000-4PC-4TC=	IEM-3400-8S=	IEM-3300-8T=
Compatibility	Routers / Switches / Servers	Cisco / Dell / HP	Cisco / Juniper / Arista / Dell / HP	Cisco, Juniper, Arista, Dell, HP	Cisco / Juniper / Arista / Dell / HP
Connector Type	RJ-45	SFP+	RJ-45 / SFP+	SFP+	RJ-45
Data Rate	1G	10Gbps	10Gbps	10Gbps	1Gbps
Depth	N/A	N/A	N/A	N/A	N/A
Expansion Slots	PCIe	N/A	N/A	N/A	PCIe
Form Factor	PCIe	PCIe	PCIe	Modular	PCIe
Height	N/A	N/A	N/A	N/A	N/A
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Interface Ports	Ethernet	Fibre Channel	RJ-45 / SFP+	SFP+	Ethernet
Max Speed	1Gbps	10Gbps	10Gbps	10Gbps	1Gbps
Module Type	Ethernet	Fibre Channel	Ethernet	Ethernet	Ethernet
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	N/A	N/A	15W	N/A	N/A
Product Name	IEM-3300-16P=	IEM-3000-8FM=	IEM-3000-4PC-4TC=	IEM-3400-8S=	IEM-3300-8T=
Product Type	Network Module	Network Card	Network Module / Network Card	Network Module	Network Module / Network Card
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Features	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation, Jumbo Frames, QoS	Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS
Supported Protocols	TCP/IP, UDP	Fibre Channel	TCP/IP	TCP/IP	TCP/IP
Weight	N/A	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A	N/A
