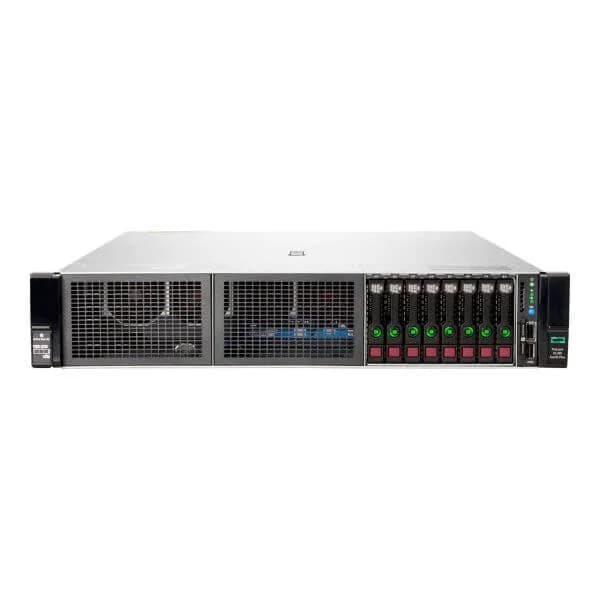

P07595-B21

Specification Of P07595-B21

General
Type	Server
Product Form Factor	Rack-mountable - 2U
Built-in Devices	LED panel
Server Scalability	2-way
Hot-Swap Bays Qty	8
Processor / Chipset
CPU	AMD EPYC 7262 / 3.2 GHz
Max Turbo Speed	3.4 GHz
Number of Cores	8-core
CPU Qty	1
Max CPU Qty	2
CPU Upgradability	Upgradable
Cache Memory
Installed Size	L3 cache - 128 MB
Cache Per Processor	128 MB
RAM
Installed Size	16 GB / 2 TB (max)
Technology	DDR4 SDRAM
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Memory Specification Compliance	PC4-25600
Form Factor	DIMM 288-pin
Slots	32 (total) / 31 (empty)
Features	Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
Configuration Features	1 x 16 GB
Hard Drive
Type	No HDD
Storage Controller
Type	1 x RAID - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	HPE Smart Array E208i-a SR Gen10
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Video Interfaces	VGA, DisplayPort
Networking
Ethernet Ports	4 x Gigabit Ethernet
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol	SNMP 3
Expansion / Connectivity
Bays	8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces	1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) / HPE iLO ¦ 1 x HPE iLO (1 in front) ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x VGA
Miscellaneous
Included Accessories	SFF Easy install rails
Compliant Standards	FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type	Power supply - hot-plug
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V (50/60 Hz)
Power Provided	500 Watt
80 PLUS Certification	80 PLUS Platinum
Environmental Standards
ENERGY STAR Certified	Yes
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Dimensions & Weight
Width	17.5 in
Depth	28 in
Height	3.4 in
Environmental Parameters
Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
