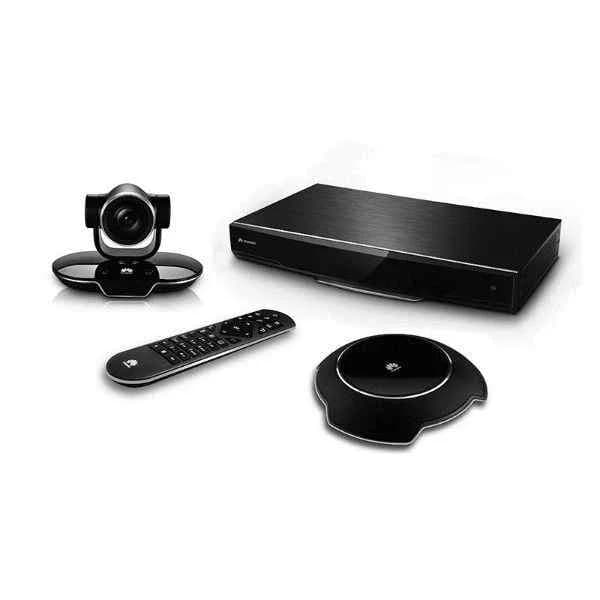

WACTERM01

VC8M3VPEN Specification

Embedded MCU

€¢ up to 4 HD 720P video endpoints + 3 voice terminals to join the conference.

€¢ The embedded MCU supports CP, voice activation, camera control, and chairman token.

€¢ two lever cascading

€¢ Mixed H.323 and SIP

Video Standard & Protocols

€¢ H.264, H.263, H.263+, H.261

€¢ ITU-T H.239

€¢ VME (Video Motion Enhancement)

People Video Resolution

€¢ 1080p(optional), 720p, 4CIF/4SIF

€¢ 1080p 30fps(optional), 720p 50/60fps

(optional), 720p 30fps

€¢ 512kbps for 720p 30fps

€¢ 768kbp for720p 50/60fps

€¢ 1Mbps for 1080p 30fps

€¢ VideoIntensifier

€¢ ViewProcessing

Camera

€¢ Embedded High Quality CMOS Camera

€¢ Video Capture Resolution: 1080p

€¢ Automatic Exposure(AE), Automatic White Balance (AWB)

€¢ Manual Picture Parameters Control

€¢ Rotatable

€¢ Private Protection Switch

Display

€¢ 21.5 Inch 16:9 LCD

€¢ Resolution: 1080p

€¢ Luminance: >200cd/m2

€¢ Response Time: <5ms

€¢ View Angle: -Horizontal: 70 degree

-Vertical: 65 degree

€¢ Contrast: 700

€¢ Luminance, Contrast Control, Rotatable

€¢ Support External Source Input

Sound System

€¢ 2xEmbedded Mics, Support External Mics

€¢ 2xEmbedded Stereo Loudspeakers

Content Video Resolution

€¢ SXGA(1280x1024) , XGA(1024x768)

€¢ SVGA(800x600) , VGA(640x480)

Audio Standard & Protocols

€¢ AAC-LD Stereo, G.722, G.711, G.728

€¢ HWA-LD Stereo : Huawei Audio Broadband Low Delay Stereo

€¢ Acoustic Echo Cancellation (AEC)

€¢ Acoustic Noise Suppression (ANS) 12 dB

€¢ Automatic Gain Control (AGC) ± 6 dB

€¢ VoiceClear

€¢ AudioEnhancer

€¢ Audio-Lip Synchronization

Other ITU-Supported Standards

€¢ H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140

Network

 €¢ Communication Standards: ITU-T H.323,

IETF SIP

€¢ Network Standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP , HTTPS, PPPoE, RTP,

RTCP

€¢ Interface:

-1-port IP, 10/100 Base-T, 2xRJ45 connectors

-1-port wireless ( WCDMA, CDMA2000 EV-DO), USB connectors

€¢ Bandwidth

-IP: 64kbps~4Mbps

-IP: Total 8Mbps (available: Supports up to 4 HD video endpoints + 3 voice terminals to join the conference)

Interface

€¢ Audio Input Interfaces

-1x3.5mm line in jack -1x3.5mm mic jack

€¢ Audio Output Interfaces

-1x3.5mm earphone jack -1x3.5mm line out jack

€¢ Video Input Interface

-1xDVI / YPbPr / VGA

Video Output Interface

-1xDVI / YPbPr / VGA

€¢ 1xUSB ports

Security

€¢ H.235 signaling and media stream encryption

€¢ AES media stream encryption

€¢ Conference access password

€¢ Conference control password

€¢ Administrator password

€¢ H.323 ID and number binding

€¢ IP address and number binding

Electrical

€¢ Working voltage: 100-240V AC

€¢ Working frequency: 50-60Hz

€¢ Power consumption: 100W

Environmental Specification

€¢ Operating Temperature: 0-40ËšC

€¢ Operating Humidity: 10-80% Non-Operating

Temperature: -40Ëš-85ËšC

€¢ Non-Operating Humidity (Non-condensing): 0-95%

€¢ Peripheral noise: < 46 dBA SPL

€¢ Lowest illuminance: 15 lux

€¢ Recommended illuminance: > 300 lux

€¢ Physical Characteristics

€¢ CodecDimensions(LxWxH):

542mmx114mmx490mm

€¢ Package Dimensions(LxWxH): 685mmx269mmx685mm

€¢ Weight: 8.2 kg
