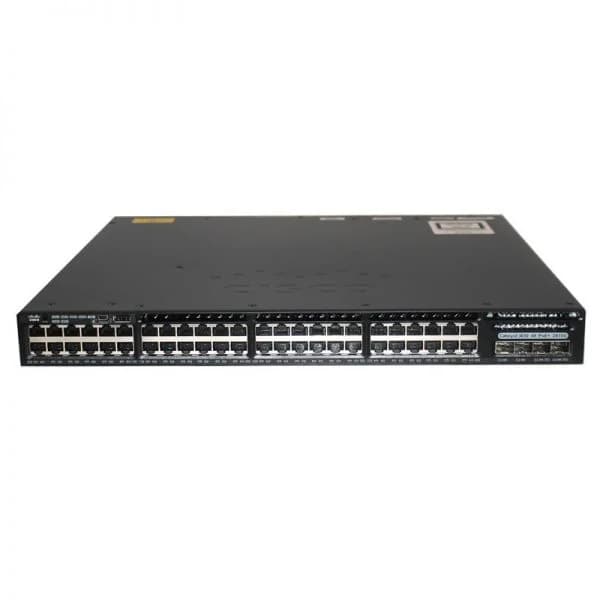

Name: Cisco Catalyst 3650 48 Port Data 2x10G Uplink IP Base
Brand: Cisco
SKU: WS-C3650-48TD-S
Price: 1200.00 USD
Availability: InStock
Rating: 5.0 (5 reviews)

Question 1

What is the Cisco Catalyst 3650 48 Port Data 2x10G Uplink IP Base (WS-C3650-48TD-S)?

Accepted Answer

The WS-C3650-48TD-S is a stackable Layer 3 access switch offering 48 Gigabit Ethernet ports, two 10G SFP+ uplinks and the Cisco IOS XE IP Base feature set.

Question 2

How many access ports and uplinks does the WS-C3650-48TD-S provide?

Accepted Answer

It provides 48 10/100/1000 Ethernet ports and two fixed 10G SFP+ uplinks for high-speed aggregation.

Question 3

What key features are included in the IP Base license?

Accepted Answer

The IP Base license delivers advanced Layer 2 switching, static and RIP routing, access control lists, QoS and basic security features.

Question 4

What is the maximum stack size supported by Catalyst 3650 switches?

Accepted Answer

You can stack up to nine Catalyst 3650 switches with a unified control plane and 80 Gbps per switch stacking bandwidth.

Question 5

Which uplink modules and transceivers are compatible with WS-C3650-48TD-S?

Accepted Answer

The switch supports any Cisco 10G SFP+ transceiver (e.g. SFP-10G-SR, SFP-10G-LX) or DAC cables for fiber or copper uplinks.

Question 6

Does the WS-C3650-48TD-S support Power over Ethernet (PoE)?

Accepted Answer

No, the “TD” model does not include PoE; it is a data-only switch without inline power capabilities.

Question 7

What is the switching capacity and packet forwarding rate?

Accepted Answer

The Catalyst 3650 delivers 176 Gbps switching capacity and up to 77.4 Mpps forwarding performance.

Question 8

Which software platform runs on the Catalyst 3650 series?

Accepted Answer

It runs Cisco IOS XE, a modular operating system providing programmability, embedded analytics and high availability.

Question 9

Can I stack the WS-C3650-48TD-S with other Catalyst models?

Accepted Answer

You can stack only Catalyst 3650 switches (all variants) within the same stacking ring; mixing with 3850 or 9200 is not supported.

Question 10

What are the typical deployment use cases for this switch?

Accepted Answer

Ideal for enterprise campus access layers, branch offices or small data center leaf configurations requiring high port density.

Question 11

How can I upgrade from IP Base to IP Services license?

Accepted Answer

Use Cisco Smart Licensing to install an IP Services upgrade token and unlock advanced routing protocols such as OSPF, EIGRP and BGP.

Question 12

How is the WS-C3650-48TD-S managed remotely?

Accepted Answer

Manage via Cisco IOS CLI over SSH, a web-based GUI with the Cisco Network Assistant or centrally with Cisco DNA Center.

Question 13

What power consumption and airflow orientation does it have?

Accepted Answer

Typical power draw is 65 W. The front-to-back airflow design suits data-center and underfloor deployments for optimal cooling.

Question 14

What warranty and support options are available?

Accepted Answer

Cisco offers a limited lifetime hardware warranty plus optional Smart Net Total Care contracts for 24×7 support and advanced replacement.

Question 15

Does the Catalyst 3650 48TD-S support advanced security features?

Accepted Answer

Yes; it supports 802.1X, Dynamic ARP Inspection, IP Source Guard, port security, RADIUS/TACACS+ and ACL enforcement.

Question 16

What quality-of-service (QoS) capabilities are supported?

Accepted Answer

It offers granular QoS with classification, marking, policing, shaping and WRED to prioritize voice, video and data traffic.

	WS-C3650-48TD-S	WS-C3650-48FQM-L	WS-C3650-48TS-E	WS-C3650-48PWQ-S
Depth	16.5 inches	11.8 inches	17 inches	11.1 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	256 MB	256 MB	256 MB	256 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.73 inches	1.73 inches	1.75 inches	1.73 inches
IOS	LAN Base	LAN Base	IP Services	IP Services
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2 / Layer 3
Manageable	Managed	Managed	Managed	Managed
Manufacturer Part Number	WS-C3650-48TD-S	WS-C3650-48FQM-L	WS-C3650-48TS-E	WS-C3650-48PWQ-S
Media Type Supported	Twisted Pair	Twisted Pair	Twisted Pair	Twisted Pair
Memory	4 GB	512 MB	512 MB	512 MB
Number of Downlink Ports	24–48 Ports	48 Ports	48 Ports	48 Ports
Number of Ethernet Ports	24–48 Ports	24–48 Ports	24–48 Ports	24–48 Ports
POE Support	Non POE	Non POE	Non POE	POE+
Port/Expansion Slot Details	48 x 10/100/1000 Ethernet ports with 4 dedicated SFP uplink ports	48 x 10/100/1000 Ethernet ports, 4 x 1G SFP uplink ports	48 Ethernet ports with 4 SFP uplink ports	48 x 10/100/1000 PoE ports, 4 x 1G SFP uplink ports
Power Consumption	N/A	130W	370W	435W
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Product Name	Cisco Catalyst 3650 Series 48-Port Data Switch (WS-C3650-48TD-S)	Cisco Catalyst 3650 48-Port Fixed Switch (LAN Base)	Cisco Catalyst 3650 48TS-E Switch	Cisco Catalyst 3650 48-Port PoE+ Switch
Product Type	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	No	No	No	No
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	128 Gbps	128 Gbps	128 Gbps	128 Gbps
Switching Capacity with Stacking	160 Gbps	480 Gbps	480 Gbps	160 Gbps
Uplink Configuration	1G	1G	1G	1G
Weight	24 lbs	14.5 lbs	26 lbs	29 lbs
Width	17.3 inches	17.5 inches	19 inches	17.2 inches
