Good firewall for medium sized environments.
FG-101E-BDL
Original Stock
Ready to Ship
FG-101E Hardware plus 1 year 8x5 FortiCare and FortiGuard Un...
FEATURED DEAL
Name:
FG-101E-BDL
- Description:
- FG-101E Hardware plus 1 year 8x5 FortiCare and FortiGuard Unified (UTM) Protection
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Fortinet
- Condition:
- Warranty:
- 3
- List Price:
$5,692.04
- Price:
$3,472.1539% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

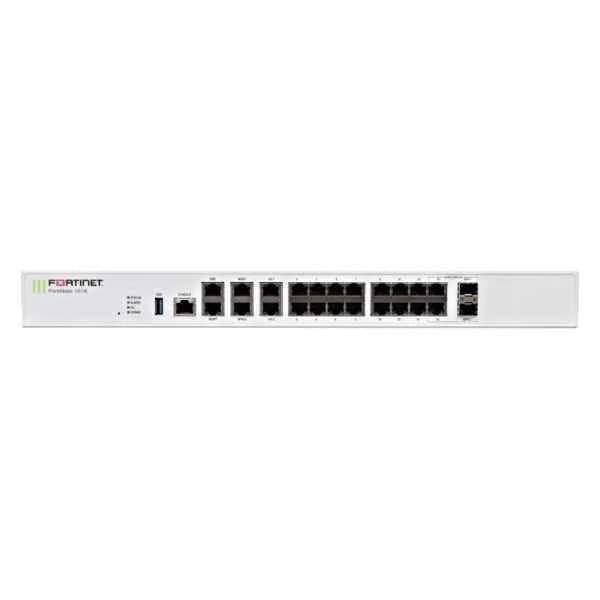

FG-101E-BDL Overview
FG-101E-BDL is a high-performance rack-mounted firewall appliance engineered for enterprise and branch office deployments. It boasts a firewall throughput of 5 Gbps and integrates dual WAN interfaces along with 8 LAN ports that include SFP support, ensuring optimum data flow and network segmentation in demanding environments.
FG-101E-BDL also features redundant AC power supplies for continuous operation and supports high availability with an active-passive mode. It offers a comprehensive suite of security services—including IPS, antivirus, web filtering, application control, and multiple VPN protocols—and can be managed via CLI, GUI, cloud, or centralized consoles to meet diverse deployment and scalability needs.
FG-101E-BDL price is $3,472.15, a 39% saving from the Fortinet list price of $5,692.04. FG-101E-BDL is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for FG-101E-BDL for additional pricing. Browse the full Fortinet Fortigate Ngfw Middle-Range Series series or explore all Fortinet products.
FG-101E-BDL Specifications
- Power Source
- AC Power Supply
- Rack Units
- 1 RU
- Redundant Power Supply Supported
- Yes
- Height
- 1.75 inches
- Weight
- 20 lbs
- Depth
- 18 inches
- Width
- 17 inches
- WAN Ports
- 2 WAN
- Memory
- 8 GB
- LAN Ports
- 8 LAN Ports
- Expansion Slots
- SFP
- Architecture
- Rack-mount
- Users/Nodes
- Unlimited
- High Availability
- Active-Passive
- Switch Ports
- Yes
- POE Ports
- No
- Form Factor
- 1 RU
- Device Type
- NGFW
- Product Type
- Firewall Appliance
- Deployment Type
- Enterprise / Branch Office
- Use Case
- VPN / Secure Access / UTM
- Threat Protection Throughput
- 3 Gbps
- IPS Throughput
- 2 Gbps
- Concurrent Sessions
- 500,000
- Maximum Concurrent Sessions
- 1,000,000
- New Sessions Per Second
- 50,000
- Routing Protocols Supported
- OSPF / BGP / Static Routing
- Security Services
- Antivirus / Web Filtering / Application Control / IPS / VPN
- Interfaces
- RJ-45 / SFP
- Logging & Monitoring
- Built-in / Syslog / Cloud Logging
- Flash Storage
- 128 GB
- VPN Throughput
- 1.5 Gbps
- Users Supported
- Unlimited
- Integrated I/O
- 8
- Centralized Configuration & Reporting
- Yes
- Firewall Layer Supported
- Layer 7
- Management Options
- Cloud / CLI / GUI / Centralized / SNMP
- Supported Applications
- 250
- Firewall Policies Supported
- 250
- Supported VPN Types
- IPSec / SSL VPN / L2TP / PPTP / GRE
- Firewall Throughput
- 5 Gbps
- Feature
- Integrated Security Management
- Product Name
- FG-101E-BDL Next-Generation Firewall
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| FG-101E-BDL |  FC-10-00307-159-02-DD |  FG-240D-BDL |  FC-10-0501E-210-02-DD |  FC-10-00143-928-02-DD | |
|---|---|---|---|---|---|
| Product Type | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance | Firewall Appliance |
| Architecture | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Deployment Type | Enterprise / Branch Office | Enterprise / Branch Office | Enterprise | Enterprise / Branch Office | Enterprise |
| Use Case | VPN / Secure Access / UTM | VPN / UTM / Secure Access | UTM | VPN / Secure Access / UTM | VPN / Secure Access / UTM |
| Firewall Layer Supported | Layer 7 | Layer 7 | Layer 7 | Layer 7 | Layer 3 / Layer 4 / Layer 7 |
| Power Source | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply | AC Power Supply |
| Redundant Power Supply Supported | Yes | Yes | Yes | Yes | Yes |
| Firewall Throughput | 5 Gbps | 10 Gbps | 4 Gbps | 10 Gbps | 10 Gbps |
| Threat Protection Throughput | 3 Gbps | 8 Gbps | 3 Gbps | 2 Gbps | 5 Gbps |
| IPS Throughput | 2 Gbps | 6 Gbps | 2 Gbps | 3 Gbps | 3 Gbps |
| VPN Throughput | 1.5 Gbps | 3 Gbps | 1 Gbps | 1 Gbps | 2 Gbps |
| Supported Applications | 250 | 50 | 100 | 120 | 50 |
| Centralized Configuration & Reporting | Yes | Yes | Yes | Yes | Yes |
| Feature | Integrated Security Management | Integrated Threat Management | Advanced threat protection & deep packet inspection | Advanced Threat Protection, Deep Packet Inspection | Advanced threat protection |
| Concurrent Sessions | 500,000 | 500000 | 500,000 | 500000 | 200000 |
| Maximum Concurrent Sessions | 1,000,000 | 1000000 | 1,000,000 | 1000000 | 500000 |
| Users/Nodes | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Integrated I/O | 8 | 8 | 8 | 4 | 8 |
| New Sessions Per Second | 50,000 | 25000 | 25,000 | 20000 | 50000 |
| Supported VPN Types | IPSec / SSL VPN / L2TP / PPTP / GRE | IPSec / SSL VPN / L2TP | IPSec / SSL VPN | IPSec / SSL VPN | IPSec / SSL VPN |
| Routing Protocols Supported | OSPF / BGP / Static Routing | OSPF / BGP / RIP / Static Routing | OSPF / BGP / Static Routing | OSPF / BGP / Static Routing | OSPF / BGP / Static Routing |
| Security Services | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN | Antivirus / Web Filtering / Application Control / IPS / VPN |
| High Availability | Active-Passive | Active-Active | Active-Passive | Active-Passive | Active-Passive |
| Interfaces | RJ-45 / SFP | RJ-45 / SFP | RJ-45 / SFP | RJ-45 / SFP / Combo Ports | RJ-45 / SFP |
| WAN Ports | 2 WAN | 2 WAN | 2 WAN | 2 WAN | 2 WAN |
| LAN Ports | 8 LAN Ports | 8 LAN Ports | 4 LAN Ports | 8 LAN Ports | 8 LAN Ports |
| Switch Ports | Yes | Yes | Yes | Yes | Yes |
| POE Ports | No | No | No | No | No |
| Management Options | Cloud / CLI / GUI / Centralized / SNMP | Cloud / CLI / GUI / Centralized / REST API / SNMP | CLI / GUI / SNMP | Cloud / CLI / GUI / Centralized / SNMP | Cloud / CLI / GUI / REST API / SNMP |
| Logging & Monitoring | Built-in / Syslog / Cloud Logging | Built-in / Syslog | Built-in / Syslog | Built-in / Syslog / Cloud Logging | Built-in / Syslog |
| Firewall Policies Supported | 250 | 300 | 150 | 200 | 200 |
| Users Supported | Unlimited | N/A | N/A | 5000 | Unlimited |
| Memory | 8 GB | 16 GB | 8 GB | 8 GB | 16 GB |
| Flash Storage | 128 GB | 128 GB | 128 GB | 128 GB | 128 GB SSD |
| Expansion Slots | SFP | SFP | SFP | SFP | SFP |
| Form Factor | 1 RU | 1 RU | Rack-mount | 1 RU | 1 RU |
| Rack Units | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU |
| Device Type | NGFW | NGFW | NGFW | NGFW | NGFW |
| Product Name | FG-101E-BDL Next-Generation Firewall | FC-10-00307-159-02-DD | FG-240D-BDL Next Generation Firewall | FC-10-0501E-210-02-DD Next-Generation Firewall | FC-10-00143-928-02-DD Next-Generation Firewall |
| Height | 1.75 inches | 1.75 inches | 1.75 inches | 1.75 inches | 1.75 inches |
| Width | 17 inches | 17.3 inches | 17.5 inches | 17 inches | 17 inches |
| Depth | 18 inches | 18.1 inches | 14 inches | 15 inches | 18 inches |
| Weight | 20 lbs | 15 lbs | 15 lbs | 12 lbs | 15 lbs |
Reviews & Ratings
G
George Ellis
5
Stable throughput with security enabled.
H
Henry Scott
5
Easy to deploy and manage.
I
Ian Peterson
5
Reliable day to day operation.
J
Jack Lawson
5
Well balanced Fortinet solution.
Questions & Answers
What is the FG-101E-BDL bundle?
The FG-101E-BDL bundle includes the FortiGate FG-101E hardware firewall and a one-year 8x5 FortiCare and FortiGuard Unified (UTM) Protection subscription.
What features does the FG-101E hardware provide?
The FG-101E hardware delivers enterprise-grade firewall, VPN, intrusion prevention, web filtering, anti-malware, application control, and SSL inspection with high throughput.
What is included in the one-year 8x5 FortiCare support?
The one-year 8x5 FortiCare support provides next-business-day hardware replacement, firmware updates, and access to Fortinet technical engineers during standard business hours.
What services does FortiGuard Unified Protection offer?
FortiGuard Unified Protection offers real-time antivirus, intrusion prevention, web filtering, antispam, application control, and vulnerability protection in a single subscription.
How does FG-101E-BDL enhance network security?
The FG-101E-BDL bundle integrates next-generation firewall capabilities with unified threat management to protect against malware, exploits, and network vulnerabilities.
What are the key UTM features of FortiGuard Unified Protection?
Key UTM features include real-time antimalware, advanced threat detection, dynamic web filtering, spam prevention, and granular application control.
What are the performance specifications of the FG-101E?
The FG-101E delivers up to 6 Gbps firewall throughput, 400 Mbps IPS performance, and 200 Mbps threat protection throughput.
How many network interfaces does the FG-101E provide?
The FG-101E offers eight Gigabit Ethernet ports, two SFP slots, and one onboard management port.
What deployment options are available for the FG-101E?
The FG-101E supports on-premises rack, desktop, and virtual cluster deployments for flexible network architectures.
How do I perform the initial setup of the FG-101E?
Use the FortiGate Setup Wizard via the web-based GUI, follow the step-by-step configuration guide, and apply your FortiGuard license to enable UTM services.
How can I renew the FortiCare and FortiGuard subscription?
You can renew online through an authorized Fortinet partner or the Fortinet Customer Service & Support portal before the subscription expires.
Does the FG-101E support SD-WAN functionality?
Yes, the FG-101E supports integrated SD-WAN with dynamic path selection, WAN optimization, and application steering.
Is the FG-101E-BDL suitable for small and medium-sized businesses?
Yes, the FG-101E-BDL bundle offers cost-effective enterprise security ideal for SMBs, branch offices, and remote sites.
What warranty period applies to the FG-101E hardware?
The FG-101E hardware comes with a one-year limited warranty covering defects and hardware failures.
Are firmware updates included with the subscription?
Yes, firmware updates and feature enhancements are included with the one-year FortiCare and FortiGuard Unified Protection subscription.
How do I access technical support for FG-101E-BDL?
Access technical support via the Fortinet Customer Service & Support portal during 8x5 business hours using your FortiCare contract credentials.
Can I trial FortiGuard Unified Protection before purchase?
Trial subscriptions are available through authorized Fortinet partners to evaluate FortiGuard UTM features with the FG-101E hardware.
