Name:

NIM-2FXO

Description:

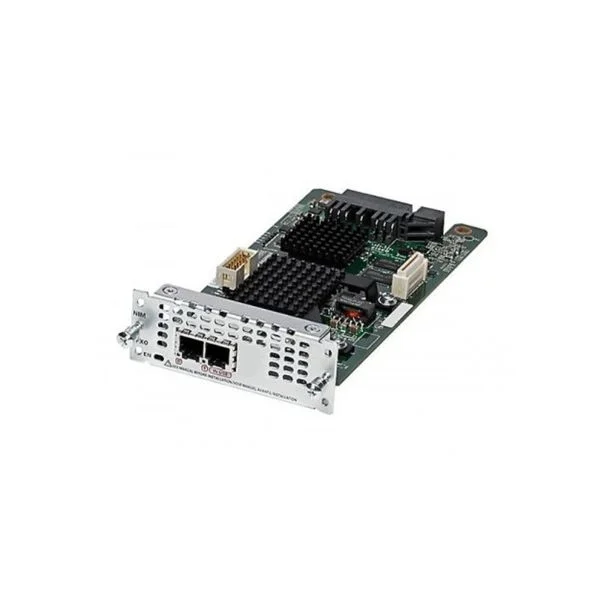

Cisco NIM-2FXO 2-Port FXO Network Interface Module for ISR 4000 and Catalyst 8300
Rating:
4.5(10)

Added to cart times recently

Availability:

Ready to Ship

Brand:
Cisco
GTIN:
882658634536
Condition:
Warranty:
90Up to 90 days warranty
List Price:

$1,282.50

Price:

$29.0097.7% off

Quantity:

1
100% Genuine Guaranteed
Global Delivery
Business Terms / PO Accepted

Protect Your Shipment for Just 1%:

Up to $5,000 Coverage

Eligible shipments can be insured for up to $5,000 for added protection.

1% Flat Insurance Rate

Coverage costs just 1% of the insured value for affordable shipping protection.

Easy Online Claims

Submit claims online if your shipment is lost, stolen, or damaged.

4.3

3 Year Extended Warranty

arrow

Same-day Shipping

arrow

30-Day Money Back Guarantee

arrow
nim-2fxo cisco nim-2fxo 2-port fxo network interface module for isr 4000 and catalyst 8300
4.3

3 Year Extended Warranty

arrow

Same-day Shipping

arrow

30-Day Money Back Guarantee

arrow

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Qty:

Exclusive Bulk Discounts tailored to your order size

Priority Processing with a dedicated account manager

Fast Response: Get your custom quote within 30 minutes during business hours

Out of Hours: Holiday requests get priority handling the next business day

NIM-2FXO

Original Stock
Ready to Ship
Certified Refurbished

Cisco NIM-2FXO 2-Port FXO Network Interface Module for ISR 4...

$1,282.50 $29.0097.7% off

Get a Quote

Trusted by the Highest-Stakes Buyers

Federal agencies and Fortune 500 operations source through ORM Systems.

US Government & Defense

  • United States Army
  • United States Embassy
  • United States Marine Corps
  • Bureau of Alcohol, Tobacco, Firearms and Explosives

Enterprise Clients

  • Novartis
  • Siemens Healthineers
  • ExxonMobil

Built Global. Stocked Local.

Regional teams and 25+ distribution partners keep stock near you and accountability in your time zone.

4Global Offices
25+Distribution Points
100+Countries Served

Buyer Protection on Every Order

Pay by PayPal or Revolut with full chargeback rights. Order on PO terms, Net-30 for government.

Verified By Federal Bodies

Every registration we claim is public record — check our federal contractor status yourself before you spend a dollar.

  • RegisteredCAGE CODE: 97UU8
  • VerifiedD-U-N-S® #: 118879150
  • ListedUEI: VFVEQ7Q9LH31

Since 2016, Enterprise-Trusted

Ten years serving buyers who audit their vendors. From federal agencies to 20,000+ enterprise clients worldwide.

10+Years Operating
20,000+Clients Served
150K+SKUs Available

Two-Port FXO Voice NIM For Branch Routers

NIM-2FXO is the Cisco 2-port Network Interface Module - FXO (Universal) with two FXO ports for ISR 4000 routers. The onboard DSP removes the host motherboard PVDM requirement for analog voice and provides 128-ms echo-tail echo cancellation. Cisco ISR 4000 NIM buyers use it in Cisco 4400 and 4300 Series ISRs, Catalyst 8300 and Catalyst 8200 edge platforms, VG420 voice gateways, C8375-E-G2, C8235-E-G2 and C8231-E-G2. It fits a NIM slot and uses a straight-through 2-wire cable to a PBX, key system or PSTN line. NIM-4FXO is the same FXO role with four ports; this part fills the two-port count.

NIM-2FXO price for new stock is $244.75, a 80.9% saving from the Cisco list price of $1,282.50. NIM-2FXO refurb price is $29.00. NIM-2FXO is in stock and available for free next-day delivery. (terms applied)

Request bulk order quote for NIM-2FXO for additional pricing. Browse the full Cisco NIM Network Interface Modules series or explore all Cisco products.

Technical Details

Two FXO ports provide loop-start or ground-start signaling, DTMF, MF or pulse dialing, caller ID, battery reversal detection and CAMA trunk use in North America. Managed OIR requires the voice ports to be on-hook and no active calls; surprise OIR is not supported. NIM-2FXO runs on Cisco IOS XE 17.3.2 on Catalyst 8300, 17.4.1 on C8200-1N-4T, 17.5.1 on C8200L-1N-4T, 17.6.1 on VG420 and 3.16 on ISR 4000. Secure router use starts with Cisco IOS XE 26.1 in Routing CLI mode. The module weighs 191 g and works with SCCP, H.323, SIP and MGCP 1.0 call control.

Ordering

NIM-2FXO is offered new sealed and certified refurbished. Certified refurbished units are inspected and bench-tested in a compatible host; connectors, latch and faceplate inspected, and the module recognized by the host. Before the PO, confirm the router model, the free NIM slot, Cisco IOS XE release, Unified Communications technology package and 2-wire cabling. UK, EU, US and MEA regional stock and RMA with advance replacement apply, with PO accepted and Net-30 for government. New warranty is up to 3-year extended, certified refurbished warranty is up to 1 year, and returns are 30 days on every condition; terms apply.

Buying Notes

Buying NotesKey Specs

Secure router model

NIM-2FXO fits C8375-E-G2, C8235-E-G2 and C8231-E-G2. C8355-G2 and fixed 8200 Secure Router models lack the NIM slot this module needs.

Software and mode

Secure Router use needs Cisco IOS XE 26.1 in Routing CLI mode. Catalyst 8300, Catalyst 8200, VG420 and ISR 4000 hosts use their higher platform release floors.

Slot count

One module takes one NIM slot. Count one slot on C8375-E-G2 and Catalyst 8200, two slots on VG420 or Catalyst 8300 2RU, and up to three integrated ISR 4000 slots.

Line cabling

FXO ports need straight-through 2-wire cables to the PBX, key system or PSTN line. Match loop-start or ground-start signaling and dialing type before cutover.

Key Specs

Key SpecsKey Spec Values

Ports

2 x FXO

Fits

C8375-E-G2 / C8235-E-G2 / Catalyst 8300

Module Features

Onboard DSP / 128-ms echo-tail

Requires

UC package for voice apps

Slot

NIM slot, one per module

Minimum Software

IOS XE 26.1 on Secure Routers

NIM-2FXO Specifications

Manufacturer Part Number
NIM-2FXO
Brand
Cisco
Model Name
2-Port FXO Network Interface Module
Module Type
Network Interface Module
Product Line
Cisco NIM Network Interface Modules
Compatible With
C8375-E-G2 / C8235-E-G2 / C8231-E-G2 / Catalyst 8300 / Catalyst 8200 / VG420 / ISR 4400 / ISR 4300
Requires
Unified Communications technology package for voice applications / IOS XE 26.1 Routing CLI mode on 8200 and 8300 Secure Routers
Form Factor
Plug-in Module
Interface Type
FXO
Port Count
2
Ports
2 x FXO
Host Slot
NIM slot
Slots Per Host
C8375-E-G2: 1 NIM slot / C8235-E-G2 and C8231-E-G2: 1 NIM slot / Catalyst 8300 2RU: 2 NIM slots / Catalyst 8300 1RU: 1 NIM slot / Catalyst 8200: 1 NIM slot / VG420: 2 NIM slots / ISR 4000: up to 3 integrated NIM slots
Hot Swap
Yes
Module Features
Onboard DSP / 128-ms echo-tail echo cancellation / caller line ID / T.38 fax relay / modem pass-through / CAMA trunk support
Minimum Software
8300 Secure Routers and 8200 Secure Routers: Cisco IOS XE 26.1 / Catalyst 8300: Cisco IOS XE 17.3.2 / Catalyst 8200: Cisco IOS XE 17.4.1 or 17.5.1 by model / ISR 4000: Cisco IOS XE 3.16
Certifications
TIA-968-B / CS-03 / AS/CA S002 / AS/CA S003 / PTC220 / TBR 21
Weight
0.191 kg

NIM-2FXO Use Case

PSTN Failover for Business Continuity with Cisco NIM-2FXO-Voice Module

In a mid-sized retail branch deploying a Cisco ISR router, the NIM-2FXO-Voice Module provides automatic PSTN failover when the IP WAN link degrades or fails. This ensures uninterrupted inbound/outbound voice connectivity, preserves customer service levels during outages, and drives up to 99.9% voice uptime for critical operations.

Legacy Analog Device Integration in Remote Sites

A manufacturing enterprise uses the 2-port FXO module in its Cisco ISRs to connect remote-site analog fax machines, alarm panels and credit-card terminals directly into its centralized VoIP infrastructure. The solution unifies management and billing, enables real-time call monitoring, and cuts analog trunk provisioning by up to 40%, maximizing ROI on existing hardware.

Local Breakout for Toll Bypass and Cost Optimization

A global services firm deploys NIM-2FXO-Voice Modules at regional branch offices to route local and emergency calls directly to the PSTN rather than backhauling over the corporate WAN. This local-breakout strategy reduces toll charges by up to 25%, lowers voice latency, simplifies regulatory compliance, and delivers measurable OPEX savings across all sites.

Best For

Analog Trunk Turn-Up

A branch router needs two office-side analog trunks to a PBX, key system or PSTN line. The design uses one NIM slot and two FXO ports, with loop-start or ground-start signaling matched to the provider line. Count one module and two straight-through 2-wire cables before the PO.

NIM Slot Buildout

A mixed Catalyst 8300 or Catalyst 8200 order needs analog voice in the same router as WAN modules. The buyer must reserve one NIM slot for the two FXO ports and leave other NIM or SM positions for Ethernet, serial or DSP modules. Match the chassis model and free slot before the PO.

Call-Control Staging

A voice team stages SCCP, H.323, SIP or MGCP 1.0 analog call paths before a site cutover. The module supplies two FXO ports and onboard DSP in the lab host. Match Cisco IOS XE release, Unified Communications package and far-end signaling before the PO.

Not Suitable If

Four FXO trunks

NIM-2FXO provides two FXO ports. Use NIM-4FXO when the same NIM slot needs four FXO trunks on supported Cisco hosts.

Station-side FXS ports

NIM-2FXO provides office-side FXO ports for PBX, key-system or PSTN lines. Use NIM-2FXSP for two FXS, FXS-E and DID station ports.

Fixed secure router chassis

C8355-G2 has no NIM expansion slot, and only cellular modules apply to that model. NIM-2FXO fits C8375-E-G2 in the 8300 Secure Routers family.

Product Comparison Table

Voice Module (2-port FXO)NIM-2FXO4 port Multiflex Trunk Voice/Clear-channel Data T1/E1 ModuleNIM-4MFT-T1/E1SM-X module with 4-port dual-mode GE/SFP or 1-port 10G SFP+SM-X-4X1G-1X10GVoice Module (2-port FXS and 4-port FXO)NIM-2FXS/4FXOP
Module TypeNetwork Interface ModuleNetwork Interface ModuleEthernetNIM
Form FactorPlug-in ModulePlug-in ModulePCIeModular

Compliance & Warranty

ISO 27001
ISO 45001
RoHS
REACH
FCC
CE
UKCA
VCCI
ISO 9001
ISO 14001

100% Genuine Product Guarantee

Every unit is authentic, sourced through trusted and authorised channels, and serial-verified on request. Genuine networking and IT hardware, guaranteed, or your money back.

Up to 3-Year Warranty Coverage

New products are backed by up to 3 years of extended warranty, and certified refurbished units by up to 90 days, for dependable protection on every order. The exact term is confirmed on your quote, order confirmation and invoice.

Hassle-Free RMA & Returns

If a unit ever falls short, our streamlined RMA process gets a replacement to you fast, with advance replacement available to keep your network running. No jargon, no runaround.

Rigorously Tested & Quality Assured

Every device is inspected, bench-tested, and firmware-verified, with configurations wiped before dispatch. Additional testing can be arranged to confirm full working condition on request.

Expert Technical Support

Our specialists assist with compatibility, configuration, licensing, and installation, before and after you buy. Real hardware expertise, whenever you need it.

Fast Global Delivery

Same-day dispatch from regional hubs, free next-day delivery*, fully tracked and insured.

Reviews & Ratings

B
Brian Kelly

Reviewed on the 23 March 2023

5

Simple installation and stable operation.

S
Steven Ward

Reviewed on the 5 August 2018

5

Good value Cisco module.

T
Talha Naveed

Reviewed on the 23 August 2023

5

No call drops observed.

S
Steven Ward

Reviewed on the 22 April 2023

5

Good value Cisco module.

T
Talha Naveed

Reviewed on the 16 April 2019

5

No call drops observed.

A
Asad Ullah

Reviewed on the 7 July 2026

4

FXO module delivered clean PSTN connectivity.

H
Hina Zahid

Reviewed on the 2 February 2021

4

Worked well with our voice gateway.

A
Asad Ullah

Reviewed on the 1 July 2025

4

FXO module delivered clean PSTN connectivity.

B
Brian Kelly

Reviewed on the 5 January 2020

4

Simple installation and stable operation.

H
Hina Zahid

Reviewed on the 25 December 2021

4

Worked well with our voice gateway.

Questions & Answers

What is NIM-2FXO?

NIM-2FXO is the Cisco 2-port Network Interface Module - FXO (Universal), a two-port FXO NIM for NIM slots in ISR 4000, Catalyst 8300, Catalyst 8200, VG420 and selected secure routers. NIM marks the Network Interface Module family, and FXO marks Foreign Exchange Office analog line ports.

Which routers take NIM-2FXO?

NIM-2FXO fits C8375-E-G2, C8235-E-G2, C8231-E-G2, Catalyst 8300, Catalyst 8200, VG420, Cisco 4400 and Cisco 4300 ISR hosts with a NIM slot. C8355-G2 and the fixed 8200 secure router models do not take it because those models do not have a NIM slot. Cisco 2900 and 3900 ISRs are not supported.

What NIM does a Catalyst 8300 use for FXO trunks?

A Catalyst 8300 uses NIM-2FXO for two FXO ports or NIM-4FXO for four FXO ports. The Catalyst 8300 voice module group also includes NIM-2FXSP, NIM-4FXSP, NIM-2FXS/4FXOP, NIM-4E/M, NIM-2BRI-NT/TE and NIM-4BRI-NT/TE. Count one NIM slot for each NIM.

How many ports does NIM-2FXO provide?

NIM-2FXO provides two FXO ports. Each port connects to a PBX, key system or PSTN line and can use loop-start or ground-start signaling. The ports also handle caller ID, battery reversal detection and CAMA trunks for dedicated E-911 service in North America.

How many NIM-2FXO modules fit in each host?

NIM-2FXO takes one NIM slot. C8375-E-G2, C8235-E-G2, C8231-E-G2, C8200-1N-4T and C8200L-1N-4T take one. Catalyst 8300 2RU models take two NIMs, Catalyst 8300 1RU models take one, VG420 takes two and ISR 4000 hosts take up to three integrated NIM slots.

What software does NIM-2FXO need?

NIM-2FXO needs Cisco IOS XE 26.1 in Routing CLI mode on 8200 and 8300 Secure Routers. Catalyst 8300 starts at Cisco IOS XE 17.3.2, Catalyst 8200 starts at 17.4.1 or 17.5.1 by model, VG420 starts at 17.6.1 and ISR 4000 uses 3.16 for IOS XE.

What features does NIM-2FXO add?

NIM-2FXO adds two FXO analog line ports with onboard DSP, 128-ms echo-tail echo cancellation, caller line ID, DTMF detection, fax pass-through, T.38 fax relay, modem pass-through, RTP, RTCP and RFC 4733 digit relay. Voice applications require the Unified Communications technology package where that package applies to the host.

Can NIM-2FXO be hot swapped?

NIM-2FXO can be inserted in supported Cisco 4000 ISR NIM slots without powering off the router. Managed OIR requires all voice ports to be on-hook and no active calls before removal or insertion. Surprise OIR is not supported, and ports may need no shutdown after insertion.

What cable does NIM-2FXO use?

NIM-2FXO uses a straight-through 2-wire cable for FXO port connections. Match the far-end PBX, key system or PSTN line to loop-start or ground-start signaling and to DTMF, MF or pulse dialing. Country locale settings control call progress tones and related voice-port parameters.

What is the difference between NIM-2FXO and NIM-4FXO?

NIM-2FXO has two FXO ports, and NIM-4FXO has four FXO ports. Both parts serve the same FXO role in the analog voice NIM family and use the same software release rows on ISR 4000, Catalyst 8300 and Catalyst 8200. Choose by the number of analog trunks.

What is the difference between NIM-2FXO and NIM-2FXSP?

NIM-2FXO terminates two FXO office-side analog lines from a PBX, key system or PSTN. NIM-2FXSP provides two FXS, FXS-E and DID station-side ports. Pick NIM-2FXO for office-line trunks and NIM-2FXSP for analog phones, fax endpoints or DID line use.

Is NIM-2FXO end of sale?

Cisco has not announced an end-of-sale date for NIM-2FXO. NIM-2FXO serves current Catalyst 8300, Catalyst 8200, VG420 and selected 8200 and 8300 Secure Router hosts, and it remains in the ISR 4000 voice interface rows with Cisco IOS XE, XE SD-WAN and vManage release values.

What condition and warranty does ORM offer for NIM-2FXO?

ORM offers NIM-2FXO as new sealed and certified refurbished. Certified refurbished units are inspected and bench-tested in a compatible host. New units carry up to a 3-year extended warranty, certified refurbished units carry up to 1 year, and returns are 30 days on every condition; terms apply.
