Name:

NIM-ES2-4

Description:

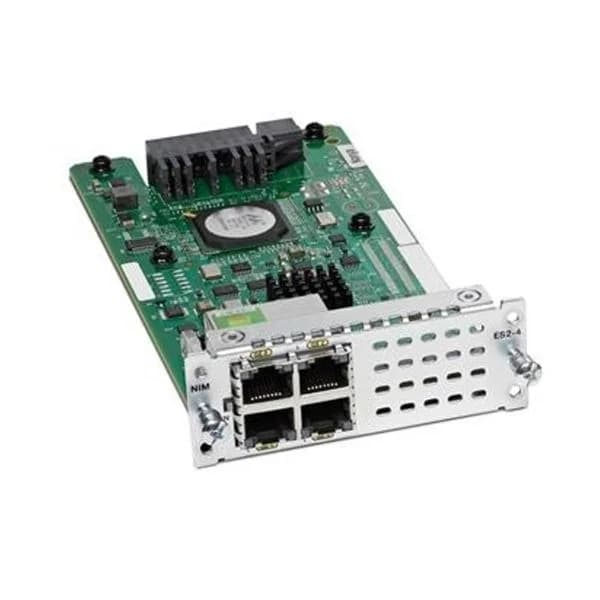

Cisco NIM-ES2-4 4-Port 1G RJ-45 Network Interface Module for Catalyst 8300 and Catalyst 8200
Rating:
4.7(10)

Added to cart times recently

Availability:

Ready to Ship

Brand:
Cisco
GTIN:
0882658704871
Condition:
Warranty:
90Up to 90 days warranty
List Price:

$889.39

Price:

$93.4589.5% off

Quantity:

1
100% Genuine Guaranteed
Global Delivery
Business Terms / PO Accepted

Protect Your Shipment for Just 1%:

Up to $5,000 Coverage

Eligible shipments can be insured for up to $5,000 for added protection.

1% Flat Insurance Rate

Coverage costs just 1% of the insured value for affordable shipping protection.

Easy Online Claims

Submit claims online if your shipment is lost, stolen, or damaged.

4.3

3 Year Extended Warranty

arrow

Same-day Shipping

arrow

30-Day Money Back Guarantee

arrow
nim-es2-4 cisco nim-es2-4 4-port 1g rj-45 network interface module for catalyst 8300 and catalyst 8200
4.3

3 Year Extended Warranty

arrow

Same-day Shipping

arrow

30-Day Money Back Guarantee

arrow

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Qty:

Exclusive Bulk Discounts tailored to your order size

Priority Processing with a dedicated account manager

Fast Response: Get your custom quote within 30 minutes during business hours

Out of Hours: Holiday requests get priority handling the next business day

NIM-ES2-4

Original Stock
Ready to Ship
Certified Refurbished

Cisco NIM-ES2-4 4-Port 1G RJ-45 Network Interface Module for...

$889.39 $93.4589.5% off

Get a Quote

Trusted by the Highest-Stakes Buyers

Federal agencies and Fortune 500 operations source through ORM Systems.

US Government & Defense

  • United States Army
  • United States Embassy
  • United States Marine Corps
  • Bureau of Alcohol, Tobacco, Firearms and Explosives

Enterprise Clients

  • Novartis
  • Siemens Healthineers
  • ExxonMobil

Built Global. Stocked Local.

Regional teams and 25+ distribution partners keep stock near you and accountability in your time zone.

4Global Offices
25+Distribution Points
100+Countries Served

Buyer Protection on Every Order

Pay by PayPal or Revolut with full chargeback rights. Order on PO terms, Net-30 for government.

Verified By Federal Bodies

Every registration we claim is public record — check our federal contractor status yourself before you spend a dollar.

  • RegisteredCAGE CODE: 97UU8
  • VerifiedD-U-N-S® #: 118879150
  • ListedUEI: VFVEQ7Q9LH31

Since 2016, Enterprise-Trusted

Ten years serving buyers who audit their vendors. From federal agencies to 20,000+ enterprise clients worldwide.

10+Years Operating
20,000+Clients Served
150K+SKUs Available

Branch Layer 2 RJ-45 Switch Ports

NIM-ES2-4 is a Network Interface Module and the Cisco 4-port Gigabit Ethernet switch NIM with four 10/100/1000 RJ-45 Layer 2 switch ports for Catalyst 8300 edge platforms. Four RJ-45 ports are the port-count split from the 8-port LAN switch NIM. A Cisco Catalyst 8300 Network Interface Module also fits Catalyst 8200, Catalyst 8200L, Catalyst 8200 uCPE-1N8 and Cisco 4000 Series ISR hosts. The single-wide NIM uses a NIM slot, or a Catalyst 8300 SM slot with C-SM-NIM-ADPT for extra NIM density. The ports connect workstations, routers, switches, Cisco IP phones or access points, and each port links at 10M, 100M or 1G.

NIM-ES2-4 price for new stock is $268.79, a 69.8% saving from the Cisco list price of $889.39. NIM-ES2-4 refurb price is $93.45. NIM-ES2-4 is in stock and available for free next-day delivery. (terms applied)

Request bulk order quote for NIM-ES2-4 for additional pricing. Browse the full Cisco NIM Network Interface Modules series or explore all Cisco products.

Technical Details

1 Gbps per port is the data-rate ceiling, and line-rate Layer 2 forwarding applies on each port. A 1-Gbps MGF connection carries intermodule traffic, and module-to-module MGF traffic is limited to 1 Gbps when several LAN switch NIMs cascade. 60 VLANs, 4094 VLAN IDs and four QoS queues per port define the switching scale. NIM-ES2-4 uses OIR in Cisco 4000 Series ISR hosts, and a blank filter plate fills the subslot after removal when no replacement follows. Port numbering runs left to right, top to bottom, with slot 0 when no NIM adapter is used. Catalyst 8300 starts at Cisco IOS XE 17.3.2; Catalyst 8200 starts at Cisco IOS XE 17.4.1, and Catalyst 8200L starts at Cisco IOS XE 17.5.1.

Ordering

NIM-ES2-4 is offered new sealed and certified refurbished. Certified refurbished units are inspected and bench-tested in a compatible host, and every port links at rated speed. Before the PO, confirm the host model, free NIM slot or C-SM-NIM-ADPT carrier use, and the required Cisco IOS XE release. Regional stock/RMA covers UK, EU, US and MEA; PO accepted, Net-30 for government and RMA with advance replacement. Cisco service ends 30 April 2030. New warranty is up to 3-year extended, certified refurbished warranty is up to 1 year, and returns are 30 days on every condition; terms apply.

Buying Notes

Buying NotesKey Specs

Choose the slot

NIM-ES2-4 needs a free NIM slot. Catalyst 8300 SM-slot use needs C-SM-NIM-ADPT, which carries two NIMs in one single-wide SM slot.

Count host positions

Order one module per free NIM position. C8300-2N2S models run 2 default NIM slots and 6 NIMs with C-SM-NIM-ADPT; C8300-1N1S models run 1 and 3.

Match software release

Catalyst 8300 needs Cisco IOS XE 17.3.2 for NIM-ES2-4; Catalyst 8200 needs 17.4.1, Catalyst 8200L needs 17.5.1 and ISR 4221 needs 16.4.1.

Plan replacement path

Cisco stopped selling NIM-ES2-4 on 17 April 2025, and service ends 30 April 2030. The replacement PID is C-NIM-8T for an 8-port 1G RJ45 module.

Key Specs

Key SpecsKey Spec Values

Ports

4 x 10/100/1000 RJ-45

Fits

Catalyst 8300 / Catalyst 8200 / ISR 4000

Module Features

4-port split / 60 VLANs / MGF cascading

Requires

NIM slot; C-SM-NIM-ADPT for SM use

Lifecycle Status

Cisco stopped selling NIM-ES2-4 on 17 April 2025

Replacement PID

C-NIM-8T

NIM-ES2-4 Specifications

Manufacturer Part Number
NIM-ES2-4
Brand
Cisco
Model Name
4-Port Gigabit Ethernet Switch NIM
Module Type
Network Interface Module
Product Line
Cisco NIM Network Interface Modules
Compatible With
Catalyst 8300 / Catalyst 8200 / Catalyst 8200L / Catalyst 8200 uCPE / ISR 4000
Requires
NIM slot / C-SM-NIM-ADPT for Catalyst 8300 SM-slot use / Cisco IOS XE release per host
Form Factor
Single-Wide
Interface Type
Ethernet
Data Rate
1G
Supported Speeds
10 Mbps / 100 Mbps / 1 Gbps
Port Count
4
Ports
4 x 10/100/1000 RJ-45
Connector Type
RJ-45
Capacity
4K MAC table entries / 60 VLANs / 4094 VLAN IDs / 1 Gbps MGF connection
Host Slot
NIM slot / Catalyst 8300 SM slot with C-SM-NIM-ADPT
Slots Per Host
C8300-2N2S: 2 NIM slots, 6 NIMs with C-SM-NIM-ADPT / C8300-1N1S: 1 NIM slot, 3 NIMs with C-SM-NIM-ADPT / C8200-1N-4T: 1 NIM slot / C8200L-1N-4T: 1 NIM slot / Cisco 4000 ISR: total NIM slots present
Hot Swap
Yes
Module Features
4-port Gigabit RJ-45 footprint / line-rate Layer 2 forwarding on each port / MGF cascading / 802.1Q trunking / 802.1X / IGMP Snooping / SPAN
Minimum Software
Catalyst 8300: Cisco IOS XE 17.3.2 / Catalyst 8200: Cisco IOS XE 17.4.1 / Catalyst 8200L: Cisco IOS XE 17.5.1 / ISR 4000 except ISR 4221: Cisco IOS XE 3.15.0, IP Base License / ISR 4221: Cisco IOS XE 16.4.1, IP Base License
Operating Temperature
0°C to 40°C
Height
21 mm
Width
79 mm
Depth
122 mm
Weight
0.079 kg

NIM-ES2-4 Use Case

High-Speed WAN Edge Aggregation in Distributed Branch Offices

In a multi-site enterprise with 50 branch offices, network architects installed the NIM-ES2-4-4PORT LAYER 2 GE SWITCH NETWORK INTERFACE MODULE in each router to aggregate four 1 GbE LAN links at the WAN edge. This deployment delivered line-rate Layer 2 switching, streamlined VLAN trunking across sites and reduced CAPEX by 20% through chassis-level port consolidation.

Top-of-Rack Consolidation in Regional Data Centers

In a regional data center hosting over 200 virtualized servers, operations teams deployed the NIM-ES2-4-4PORT LAYER 2 GE SWITCH NETWORK INTERFACE MODULE as a Top-of-Rack switch to interconnect racks via four dedicated uplinks and enforce per-VLAN separation. The solution achieved sub-5 µs latency, enhanced bandwidth utilization by 40% and simplified network management through dynamic VLAN control.

Deterministic Industrial IoT Edge Networking

A manufacturing plant implemented a real-time monitoring system for 150 sensors and PLCs, leveraging the NIM-ES2-4-4PORT LAYER 2 GE SWITCH NETWORK INTERFACE MODULE to isolate traffic on four Gigabit ports and maintain deterministic packet delivery. The outcome was zero packet loss under peak loads, seamless maintenance workflows and a 15% improvement in overall production uptime.

Best For

Failed Switch NIM

The buyer has a failed 4-port switch NIM in a Cisco 4000 Series ISR and needs the same Layer 2 port layout. NIM-ES2-4 preserves the four 10/100/1000 RJ-45 ports and the GigabitEthernet numbering scheme. Count the free NIM slot and match the IOS XE release before the PO.

Branch Port Add

The buyer needs four local copper switch ports without adding an external switch to a Catalyst 8200 or Catalyst 8300 router. The module fills one single-wide NIM slot and links at 10M, 100M or 1G. Count one port per connected device and reserve the RJ-45 cables before the PO.

Chassis Build Out

The buyer is building a Catalyst 8300 with more NIMs than the default NIM slots. C-SM-NIM-ADPT houses two NIMs in one single-wide SM slot for higher NIM density. Count 6 NIMs on C8300-2N2S models or 3 on C8300-1N1S models before the PO.

Not Suitable If

More than four copper ports

NIM-ES2-4 provides four 10/100/1000 RJ-45 ports. Catalyst 8300, Catalyst 8200 and Cisco 4000 ISR hosts take NIM-ES2-8 for eight non-PoE Gigabit Ethernet switch ports.

PoE access devices

NIM-ES2-4 is the non-PoE 4-port module. Use NIM-ES2-8-P for eight PoE/PoE+ Gigabit Ethernet switch ports on hosts that take that PID.

10G fiber handoff

NIM-ES2-4 reaches 1G RJ-45 only. Catalyst 8300 takes C-NIM-4X for four 1/10G SFP+ switch ports and LAN/WAN MACsec.

Product Comparison Table

4PORT LAYER 2 GE SWITCH NETWORK INTERFACE MODULENIM-ES2-4NIM Carrier Card for SSD DrivesNIM-SSD4 port Multiflex Trunk Voice/Clear-channel Data T1/E1 ModuleNIM-4MFT-T1/E1SM-X module with 6-port dual-mode GE / SFPSM-X-6X1GOne port T3/E3 Service moduleSM-X-1T3/E3
Module TypeNetwork Interface ModuleStorage ModuleNetwork Interface ModuleEthernetWAN
Form FactorSingle-WideSingle-WidePlug-in ModulePCIeModular

Compliance & Warranty

ISO 27001
ISO 45001
RoHS
REACH
FCC
CE
UKCA
VCCI
ISO 9001
ISO 14001

100% Genuine Product Guarantee

Every unit is authentic, sourced through trusted and authorised channels, and serial-verified on request. Genuine networking and IT hardware, guaranteed, or your money back.

Up to 3-Year Warranty Coverage

New products are backed by up to 3 years of extended warranty, and certified refurbished units by up to 90 days, for dependable protection on every order. The exact term is confirmed on your quote, order confirmation and invoice.

Hassle-Free RMA & Returns

If a unit ever falls short, our streamlined RMA process gets a replacement to you fast, with advance replacement available to keep your network running. No jargon, no runaround.

Rigorously Tested & Quality Assured

Every device is inspected, bench-tested, and firmware-verified, with configurations wiped before dispatch. Additional testing can be arranged to confirm full working condition on request.

Expert Technical Support

Our specialists assist with compatibility, configuration, licensing, and installation, before and after you buy. Real hardware expertise, whenever you need it.

Fast Global Delivery

Same-day dispatch from regional hubs, free next-day delivery*, fully tracked and insured.

Reviews & Ratings

I
Imran Qazi

Reviewed on the 23 October 2018

5

Compact switch module worked perfectly for branch expansion.

K
Khalid Mahmood

Reviewed on the 20 September 2024

5

Good option for adding extra LAN ports.

R
Ryan Cooper

Reviewed on the 6 September 2025

5

Installed cleanly with instant port recognition.

A
Areeba Khan

Reviewed on the 27 December 2024

5

Stable switching performance so far.

I
Imran Qazi

Reviewed on the 15 September 2022

5

Compact switch module worked perfectly for branch expansion.

R
Ryan Cooper

Reviewed on the 19 August 2021

5

Installed cleanly with instant port recognition.

A
Areeba Khan

Reviewed on the 21 January 2023

5

Stable switching performance so far.

L
Laura Bennett

Reviewed on the 22 December 2020

4

Layer 2 switching was reliable and easy to manage.

L
Laura Bennett

Reviewed on the 10 July 2017

4

Layer 2 switching was reliable and easy to manage.

K
Khalid Mahmood

Reviewed on the 19 January 2025

4

Good option for adding extra LAN ports.

Questions & Answers

What is NIM-ES2-4?

NIM-ES2-4 is the Cisco 4-port Gigabit Ethernet switch NIM, ordered as 4-port Layer 2 Gigabit Ethernet LAN Switch NIM in spare form. NIM means Network Interface Module, ES marks EtherSwitch, 2 marks the second generation, and 4 marks the four RJ-45 ports.

Which routers take NIM-ES2-4?

NIM-ES2-4 fits Catalyst 8300 models C8300-2N2S-4T2X, C8300-2N2S-6T, C8300-1N1S-4T2X and C8300-1N1S-6T; Catalyst 8200 models C8200-1N-4T, C8200L-1N-4T and C8200 uCPE-1N8; and ISR 4461, 4451, 4431, 4351, 4331, 4321 and 4221 routers. A free NIM slot is the normal fit.

What Network Interface Module does a Catalyst 8300 use?

A Catalyst 8300 uses NIM-ES2-4 for four 1G RJ-45 Layer 2 switch ports. The same Ethernet switch class on Catalyst 8300 also takes NIM-ES2-8, NIM-ES2-8-P, C-NIM-8T, C-NIM-8M and C-NIM-4X. C-SM-NIM-ADPT adds two NIM positions in one SM slot.

What ports and speeds does NIM-ES2-4 have?

NIM-ES2-4 has four 10/100/1000 RJ-45 Ethernet switch ports. Each port negotiates speed and duplex with the attached device, and the attached device must be within 100 meters. A Gigabit Ethernet port also trunks to another switch module, router, server or switch.

Does NIM-ES2-4 need transceivers?

NIM-ES2-4 does not need transceivers because the four interfaces are RJ-45 copper ports. Use Category 5 cable with RJ-45 male connectors for GE connections. 10BASE-T uses Category 3, 4 or 5 UTP, 100BASE-TX uses Category 5 UTP, and 1000BASE-TX uses Category 5e or Category 6 UTP.

How many NIM-ES2-4 modules fit in a router?

NIM-ES2-4 counts against NIM positions. C8300-2N2S models take 2 default NIMs and 6 with C-SM-NIM-ADPT; C8300-1N1S models take 1 and 3. Cisco 4451-X and 4351 take 5 with SM-X-NIM-ADPTR, Cisco 4431 takes 3, and Cisco 4321 takes 2. OIR needs a blank filter plate after removal.

What features does NIM-ES2-4 add?

NIM-ES2-4 adds the four-port Gigabit RJ-45 switch footprint, line-rate Layer 2 forwarding on each port, 802.1Q trunks, 802.1X, IGMP Snooping, SPAN, 60 VLANs and 4094 VLAN IDs. MGF cascading lets several LAN switch NIMs behave as one switch in a Cisco 4000 Series ISR.

What software does NIM-ES2-4 require?

NIM-ES2-4 requires Cisco IOS XE 17.3.2 on Catalyst 8300, 17.4.1 on Catalyst 8200, 17.5.1 on Catalyst 8200L, 17.4.1 on Catalyst 8200 uCPE and 3.15 on most Cisco 4000 Series ISR models. ISR 4221 requires Cisco IOS XE 16.4.1 with the IP Base image.

What is the difference between NIM-ES2-4 and NIM-ES2-4=?

NIM-ES2-4 and NIM-ES2-4= are the same Cisco hardware, with NIM-ES2-4= used as the spare ordering form. The equals sign does not change the four 10/100/1000 RJ-45 ports, single-wide form factor, host fit, software requirement or lifecycle dates. Order the exact PID your PO requires.

What is the replacement for NIM-ES2-4?

The replacement for NIM-ES2-4 is C-NIM-8T. C-NIM-8T changes the successor path to an 8-port 1G RJ45 switch NIM, while NIM-ES2-4 has four 10/100/1000 RJ-45 Layer 2 switch ports. Confirm the target Catalyst 8000 or ISR platform, free slot and software release before ordering.

What is the difference between NIM-ES2-4 and NIM-ES2-8?

NIM-ES2-4 has four 10/100/1000 RJ-45 Layer 2 switch ports, and NIM-ES2-8 has eight. Both are non-PoE Gigabit Ethernet LAN switch NIMs and both use the single-wide NIM form factor. Choose NIM-ES2-4 for four-port replacements and NIM-ES2-8 for higher copper port density.

What is the difference between NIM-ES2-4 and NIM-ES2-8-P?

NIM-ES2-4 is the 4-port non-PoE Gigabit Ethernet switch NIM, and NIM-ES2-8-P is the 8-port PoE/PoE+ Gigabit Ethernet switch NIM. Cisco 4221 takes the non-PoE 4-port module and does not take the 8-port PoE module. Use the PoE PID where the host and power plan take it.

Is NIM-ES2-4 end of sale?

Cisco stopped selling NIM-ES2-4 on 17 April 2025. Last ship date was 15 July 2025, routine failure analysis and new service attachment ended 17 April 2026, service contract renewal ends 12 July 2029, and last date of support is 30 April 2030 for the module.

What condition and warranty does ORM offer for NIM-ES2-4?

ORM offers NIM-ES2-4 new sealed and certified refurbished. Cisco service ends 30 April 2030. Certified refurbished units are inspected and bench-tested in a compatible host. Every port links at rated speed. New warranty is up to 3-year extended, certified refurbished warranty is up to 1 year, and returns are 30 days on every condition; terms apply.
