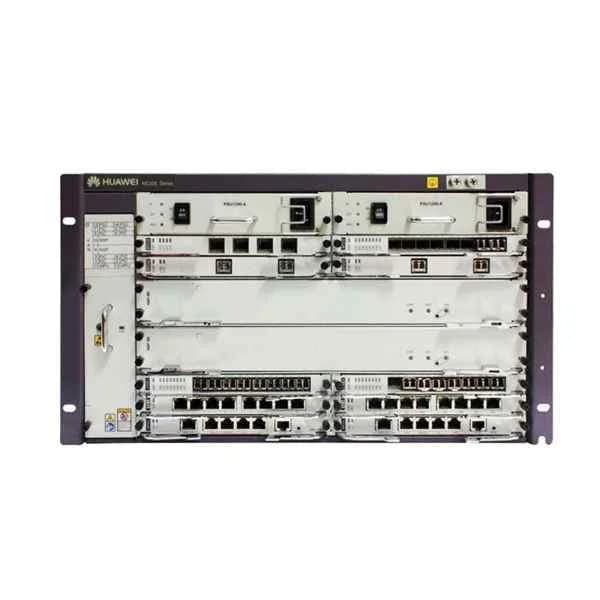

Name: CR2M08BASA13
Brand: Huawei
Price: 9592.00 USD
Availability: InStock

CR2M08BASA13 Specification

CR2M08BASA13 Specification
Switching Capacity	480 Gbit/s
Forwarding Performance	360 Mpps
Fixed Ports	none
Number of Slots	2 MPUs 2 NSPs 8 PICs
Dimensions (H x W x D)	8.7 in. x 17.4 in. x 8.6 in. DC = 5U (222 mm x 442 mm x 220 mm DC = 5U) 10.3 in. x 17.4 in. x 8.6 in. AC = 6U (264 mm x 442 mm x 220 mm AC = 6U)
Power consumption (in full configuration)	645W (DC) 703W (AC)
Weight in Full Configuration	49.1 lb (22.3 kg) (DC) 59.5 lb (27.0 kg) (AC)
Interface Types	40 GE 10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1
Clock Synchronization	Synchronous Ethernet and IEEE 1588v2
Layer 2 Features	IEEE 802.1q IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP
IPv4/IPv6 Routing Protocols	IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing
L2/L3 VPN	LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN
Multicast	IGMPv1/v2/v3 IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN
QoS	WRED Five-level HQoS VLL/PWE3 QoS
Reliability	NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades
Security	ACL-based packet filtering AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2
Value-added Services	NAT, IPSec, GRE, and NetStream
OAM	Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah
Operating Temperature	-40°F to 149°F (-40°C to 65°C)
Operating Relative Humidity	5% to 85%, non-condensing
Operating Altitude	‰¤ 9,842.5 ft. (3,000m)

Overview Of CR2M08BASA13
