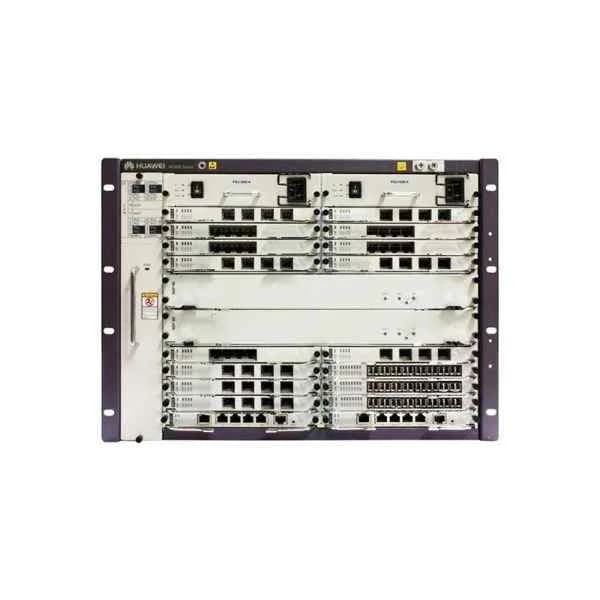

Name: NE20E-S16A DC Basic Configuration (Includes NE20E-S16A Chassis,2*MPUE1,2*DC Power,Power cord,without Software Charge and Document)
Brand: Huawei
SKU: CR2M16BASD13
Price: 14592.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the NE20E-S16A DC Basic Configuration (SKU CR2M16BASD13)?

Accepted Answer

The NE20E-S16A DC Basic Configuration (SKU CR2M16BASD13) is a 1U DC-powered network chassis including the NE20E-S16A chassis, two MPUE1 uplink modules, two DC power modules and a power cord; software charges and documentation are not included.

Question 2

What components are included in SKU CR2M16BASD13?

Accepted Answer

SKU CR2M16BASD13 includes one NE20E-S16A chassis, two MPUE1 multi-purpose uplink modules, two DC power supply modules, and one power cord; software charges and printed documentation are excluded.

Question 3

Are software licenses included with the DC Basic Configuration?

Accepted Answer

No. The NE20E-S16A DC Basic Configuration excludes all software and feature licenses; network OS and additional feature packs must be purchased separately.

Question 4

What are the DC power supply specifications?

Accepted Answer

Each DC power module accepts –48 V to –60 VDC input and delivers up to 650 W output with N+1 redundancy, load sharing and auto-switchover support.

Question 5

How many network ports does the NE20E-S16A support?

Accepted Answer

The NE20E-S16A chassis supports up to 16 SFP/SFP+ ports, enabling 1 GbE and 10 GbE connectivity per uplink module.

Question 6

What is the forwarding performance of the NE20E-S16A?

Accepted Answer

The NE20E-S16A provides up to 160 Gbps of line-rate forwarding and up to 120 Mpps packet throughput for high-performance switching and routing.

Question 7

What are the chassis dimensions and weight?

Accepted Answer

The NE20E-S16A chassis measures 440 mm × 400 mm × 44 mm (W × D × H), occupies 1 U of rack space, and weighs approximately 5.5 kg (net).

Question 8

Which management interfaces are available on the NE20E-S16A?

Accepted Answer

It offers an out-of-band 10/100 Mbps Ethernet management port, an RJ45 console port, and a micro-USB console interface for local and remote management.

Question 9

Does the NE20E-S16A support hot-swappable modules and power supplies?

Accepted Answer

Yes. Both MPUE1 uplink modules and DC power supply modules are hot-swappable, enabling zero-downtime maintenance and upgrades.

Question 10

What cooling features does the NE20E-S16A include?

Accepted Answer

The chassis employs front-to-back redundant fans in an N+1 configuration, providing continuous airflow, thermal protection, and automatic fan speed adjustment.

Question 11

What rack mounting options are supported?

Accepted Answer

The NE20E-S16A fits standard 19-inch EIA racks; optional slide-in rail kits or fixed rack-mount brackets can be ordered separately.

Question 12

What environmental operating conditions are required?

Accepted Answer

Operating temperature: 0 °C to 45 °C; storage temperature: –40 °C to 70 °C; relative humidity: 5%–95% non-condensing; altitude: up to 5,000 m.

Question 13

What certifications and compliance standards does the NE20E-S16A meet?

Accepted Answer

The NE20E-S16A is certified to CE, FCC, UL, RoHS and EN standards for safety, electromagnetic compatibility and environmental compliance.

Question 14

Is technical support and warranty included with SKU CR2M16BASD13?

Accepted Answer

A one-year limited hardware warranty is included; extended warranty and technical support service packages are available for purchase.

Question 15

How do I order additional software or feature licenses?

Accepted Answer

Contact your authorized sales representative or reseller, reference SKU CR2M16BASD13, and specify required network OS, security or feature license SKUs separately.

Question 16

What are the typical use cases for the NE20E-S16A DC Basic Configuration?

Accepted Answer

This configuration is ideal for enterprise branch aggregation, campus edge switching, and top-of-rack data center deployments requiring DC power and modular uplinks.

	CR2M16BASD13	CR2M04BASA01	CR2P2FBASA10	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	CR2P2EBASA10
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / DSL	N/A	Fiber Optic	N/A	Fiber Optic / DSL / 4G
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall, Intrusion Prevention	Firewall, Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	IEEE 802.3, FCC, CE	CE, FCC	FCC, CE	CE, FCC, RoHS	IEEE 802.3, FCC, CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15 inches	12 inches	17 inches	N/A	16.0 inches
Device Type	Router	Router	Router	Router	Router
EMC	FCC Part 15, CE	N/A	FCC Part 15, EN 55032	N/A	EN 55032, EN 55024
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM, SFP+	NIM	SFP+	NIM, SFP+	NIM, SFP+
Features	Mesh, VPN, IPv6 Compatible, Firewall, MPLS	VPN / Firewall / Redundancy / MPLS	VPN, Firewall, IPv6 Compatible	VPN, MPLS, IPv6 Compatible, Firewall, Redundancy	VPN, Firewall, IPv6 Compatible, POE
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Chassis	Rack-mount
Height	2 inches	2 inches	4 inches	N/A	2.0 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video	WAN Optimization	Voice, WAN Optimization	Voice, Video	Voice, Video
Interface Ports	RJ-45, SFP+	RJ-45 / SFP	RJ-45, SFP, SFP+	RJ-45, SFP	RJ-45, SFP
LAN Ports	8 LAN Ports	4 LAN Ports	4 LAN Ports	Modular LAN	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	4 GB	2 GB	2 GB
Modular Slots Available	3+ Slots	3+ Slots	2 Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6, MPLS, OSPF, BGP	IPv4, IPv6
Power	350 Watt	150W	250W	240W	150W
Power Source	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / Redundant	AC Power Supply / Redundant DC Power Supply	DC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant
Product Name	CR2M16BASD13 Enterprise Modular Router	CR2M04BASA01 Enterprise Router	CR2P2FBASA10 Enterprise Multifunction Router	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	CR2P2EBASA10 Enterprise Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, SNMP, HTTPS	SNMP, HTTPS, SSH	SSH, Telnet, HTTPS	Telnet, SSH, SNMP, HTTPS	SSH, Telnet, SNMP
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / MPLS / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	UL, CE	N/A	EAC, RoHS	N/A	RoHS, UL
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	TIA/EIA	N/A	ITU-T	N/A	FCC Part 15, CE
Throughput Capacity	2 Gbps	1 Gbps	10 Gbps	80 Gbps	1 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	Modular WAN	2 WAN
Weight	15 lbs	15 lbs	20 lbs	N/A	6 lbs
Wi-Fi Standard	WiFi 6e	N/A	N/A	N/A	N/A
Width	17 inches	19 inches	17 inches	N/A	17.5 inches
Wireless Support	No	No	No	No	No
