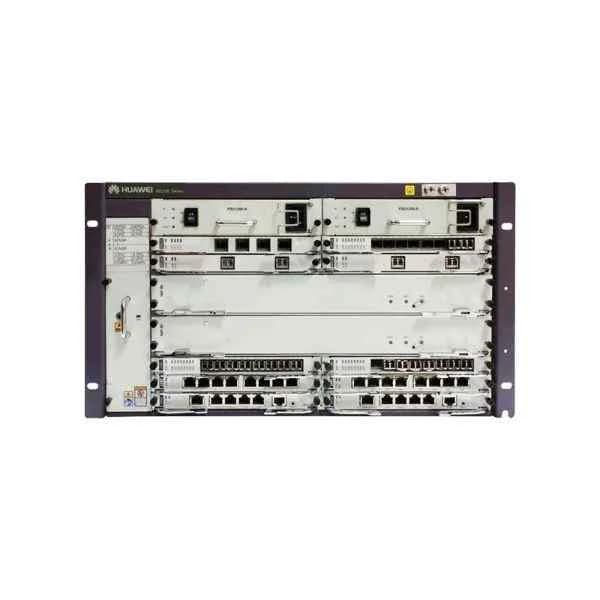

Name: NE20E-S8 DC Basic Configuration (Includes NE20E-S8 Chassis,2*MPUE1,2*DC Power,Power cord,without Software Charge and Document)
Brand: Huawei
SKU: CR2M08BASD12
Price: 7167.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is included in the CR2M08BASD12 NE20E-S8 DC Basic Configuration?

Accepted Answer

The CR2M08BASD12 package includes the NE20E-S8 chassis, two MPU-E1 control cards, two 48 V DC power modules with power cord set. Software licenses and printed documentation are not included.

Question 2

What are the key features of the NE20E-S8 chassis?

Accepted Answer

The NE20E-S8 chassis offers eight hot-swappable line-card slots, redundant control-plane architecture, front-to-back airflow, and N+1 fan redundancy for high availability and scalability.

Question 3

How many MPUs are supported and preinstalled in this configuration?

Accepted Answer

This basic configuration includes two MPU-E1 modular processing units preinstalled and supports up to two MPUs for load sharing and seamless redundancy.

Question 4

Which DC power modules are supplied with this package?

Accepted Answer

The package ships with two 48 V DC power modules and all required power cables, configured in an N+1 redundant arrangement to ensure uninterrupted operation.

Question 5

Does the CR2M08BASD12 include software licenses or documentation?

Accepted Answer

No. This basic configuration does not include any software feature licenses or printed documentation; both must be procured separately.

Question 6

What is the forwarding capacity of the NE20E-S8?

Accepted Answer

The NE20E-S8 chassis delivers up to 640 Gbps of system forwarding capacity and supports a packet forwarding rate of up to 240 Mpps.

Question 7

How many and what types of ports can the NE20E-S8 support?

Accepted Answer

Depending on line-card selection, the NE20E-S8 supports up to eight modules offering combinations of FE, GE, 10 GE, 25 GE, 40 GE, and 100 GE ports for flexible bandwidth scaling.

Question 8

What redundancy options are available for high availability?

Accepted Answer

The NE20E-S8 supports N+1 redundancy for power modules and fans, dual control cards (MPUs), and stateful switchover to ensure uninterrupted service.

Question 9

Which management interfaces does the NE20E-S8 offer?

Accepted Answer

Management options include a local console port, RJ-45 Ethernet out-of-band management, SSH/Telnet CLI, SNMP, Netconf/YANG, and Web-based GUI support.

Question 10

What is the power consumption and efficiency of the NE20E-S8?

Accepted Answer

Under full load, the NE20E-S8 consumes up to 500 W and achieves DC power conversion efficiency of over 90 %, optimized for 48 V environments.

Question 11

What are the physical dimensions and weight of the chassis?

Accepted Answer

The NE20E-S8 is a 3U 19-inch rackmount unit measuring 440 mm (W) x 500 mm (D) x 133.4 mm (H) and weighs approximately 17 kg.

Question 12

Is the NE20E-S8 compatible with additional line cards and MPUs?

Accepted Answer

Yes. The chassis supports all NE-series line cards and MPUs designed for the NE20E family, enabling flexible upgrades and mixed-module deployments.

Question 13

What environmental conditions are required for optimal operation?

Accepted Answer

The NE20E-S8 operates in –5 °C to 55 °C ambient temperature, 5 %–95 % non-condensing relative humidity, and altitude up to 5,000 m.

Question 14

How is the installation and commissioning process performed?

Accepted Answer

Install the NE20E-S8 in a standard 19-inch rack, connect DC supply to the power modules, slide in line cards and MPUs, then configure via CLI or GUI for network integration.

Question 15

What security features are built into the NE20E-S8?

Accepted Answer

The NE20E-S8 includes control-plane protection, ACLs, IPsec VPN, MACsec, DoS/DDL attack prevention, and secure management protocols to safeguard network traffic.

Question 16

What warranty and support options are available?

Accepted Answer

The NE20E-S8 comes with a one-year limited hardware warranty and 8×5 NBD (next-business-day) replacement service; extended warranties and advanced support plans are available.

	CR2M08BASD12	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	Huawei NE20E-S4 with 1MPUE, 2DC Power (CR2M04BASD01)	CR2M08BASA13	CR2M04BASA01
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / DSL	N/A	N/A	Fiber Optic / DSL	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention
Compliance Standards	CE, FCC	CE, FCC, RoHS	N/A	FCC / CE / RoHS	CE, FCC
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	18 inches	N/A	N/A	18 inches	12 inches
Device Type	Router	Router	Router	Router	Router
EMC	EN55032, EN61000-6-1	N/A	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	EHWIC	NIM, SFP+	NIM / SFP+	SFP+	NIM
Features	VPN, VoIP, IPv6 Compatible, Firewall, MPLS	VPN, MPLS, IPv6 Compatible, Firewall, Redundancy	VPN, Redundancy, Modular Expansion, Integrated Services	VPN / Firewall / IPv6 Compatible / High Availability	VPN / Firewall / Redundancy / MPLS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	N/A	512 MB	512 MB
Form Factor	Rack-mount	Chassis	Chassis	Rack-mount	Rack-mount
Height	2 inches	N/A	N/A	2 inches	2 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video	Voice, Video	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	WAN Optimization
Interface Ports	RJ-45, SFP	RJ-45, SFP	RJ-45, SFP	RJ-45 / SFP+ / Combo Ports	RJ-45 / SFP
LAN Ports	8 LAN Ports	Modular LAN	N/A	4 LAN Ports	4 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	2 GB	N/A	4 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	N/A	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6	IPv4, IPv6, MPLS, OSPF, BGP	IPv4 / IPv6 / MPLS	IPv4 / IPv6	IPv4, IPv6
Power	350 Watt	240W	N/A	250W	150W
Power Source	AC Power Supply / Redundant	DC Power Supply / Redundant	2*DC Power (CR2M04BASD01)	AC Power Supply (Redundant Option Available)	AC Power Supply / Redundant
Product Name	CR2M08BASD12 Enterprise Modular Router	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	Huawei NE20E-S4 with 1MPUE, 2DC Power (CR2M04BASD01)	CR2M08BASA13 Enterprise Modular Router	CR2M04BASA01 Enterprise Router
Product Type	Enterprise Router	Enterprise Router	Carrier-Grade Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SNMP, SSH, HTTPS	Telnet, SSH, SNMP, HTTPS	SNMP / CLI	SSH / HTTPS / SNMP	SNMP, HTTPS, SSH
Routing Protocols	OSPF / BGP / EIGRP	OSPF / BGP / MPLS / Static Routing	OSPF / BGP / IS-IS / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	Surge Protection, ESD Protection	N/A	N/A	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	No	Yes	Yes
Telecom	N/A	N/A	N/A	N/A	N/A
Throughput Capacity	10 Gbps	80 Gbps	N/A	10Gbps	1 Gbps
Use Case	Enterprise	Enterprise	Enterprise / Carrier	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	Modular WAN	N/A	2 WAN	2 WAN
Weight	15 lbs	N/A	N/A	15 lbs	15 lbs
Wi-Fi Standard	WiFi 6	N/A	N/A	N/A	N/A
Width	19 inches	N/A	N/A	17 inches	19 inches
Wireless Support	No	No	No	No	No
