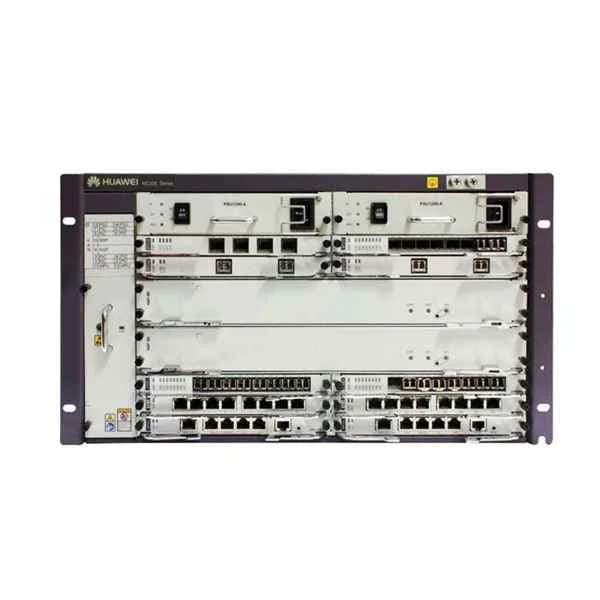

Name: NE20E-S8A DC Basic Configuration (Includes NE20E-S8A Chassis,2*MPUE1,2*DC Power,Power cord,without Software Charge and Document)
Brand: Huawei
SKU: CR2M08BASD13
Price: 9727.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the Huawei NE20E-S8A DC Basic Configuration (SKU: CR2M08BASD13)?

Accepted Answer

The NE20E-S8A DC Basic Configuration is a high-performance aggregation router package including the NE20E-S8A chassis, 2×MPUE1 processing units, 2×DC power modules, and a power cord. Software license and documentation are not included.

Question 2

Which components are included in SKU CR2M08BASD13?

Accepted Answer

This package contains: 1× NE20E-S8A chassis, 2× MPUE1 line cards, 2× DC power supply units, and 1× AC/DC power cord. No software license or printed manuals are provided.

Question 3

What power supply type does the NE20E-S8A DC Basic Configuration use?

Accepted Answer

It uses dual hot-swappable DC power modules, each supporting −36 V to −75 V DC input for carrier-grade reliability and redundancy.

Question 4

What performance can I expect from the NE20E-S8A router?

Accepted Answer

The NE20E-S8A delivers up to 160 Gbps of throughput per chassis with full feature set enabled, suitable for large-scale aggregation and service edge deployments.

Question 5

What are the primary use cases for this NE20E-S8A configuration?

Accepted Answer

Ideal for telecom aggregation, data center interconnect, and enterprise WAN edge, offering high-density 10GE/40GE services, IPv4/IPv6 routing, and advanced QoS.

Question 6

Can I install additional line cards in this configuration?

Accepted Answer

Yes. The NE20E-S8A chassis supports up to eight line cards including MPUE1, various SFP/SFP+, XFP, QSFP+ and CFP interfaces for flexible expansion.

Question 7

What is the role of the MPUE1 processing units?

Accepted Answer

MPUE1 modules provide high-density 10GbE and 40GbE packet forwarding and hardware-accelerated services such as IPv4/IPv6 routing, MPLS, and QoS.

Question 8

Does this package include software services or licenses?

Accepted Answer

No. Software licenses, feature keys, and network management applications must be purchased separately to enable advanced routing functions.

Question 9

What are the physical dimensions and weight of the NE20E-S8A chassis?

Accepted Answer

The chassis measures 442×445×44.4 mm (W×D×H) and weighs approximately 12 kg without line cards or power modules, fitting standard 19″ racks.

Question 10

What environmental conditions does the NE20E-S8A support?

Accepted Answer

Operating temperature: 0 °C to 45 °C; storage: −40 °C to 70 °C; relative humidity: 5%–95% non-condensing; altitude: up to 5,000 m.

Question 11

How is system management handled on the NE20E-S8A?

Accepted Answer

Management is via a dedicated out-of-band Ethernet port, CLI (SSH/Telnet), and SNMP for integration with network management systems.

Question 12

What warranty and support options are available?

Accepted Answer

Huawei provides a one-year limited warranty with options to extend via Software Subscription & Support (SSS) contracts for hardware and software maintenance.

Question 13

How do I order replacement parts or upgrades?

Accepted Answer

Contact your Huawei authorized reseller or regional support center with SKU CR2M08BASD13 to order additional line cards, power modules, or licenses.

Question 14

What certifications does the NE20E-S8A hold?

Accepted Answer

It is certified for CE, FCC, UL, and RoHS compliance, ensuring interoperability and safety for global telecom and enterprise deployments.

Question 15

Can I migrate from AC to DC power supply on this chassis?

Accepted Answer

Yes. The NE20E-S8A chassis supports hot-swappable AC or DC power modules; simply replace the AC modules with DC units without downtime.

Question 16

What distinguishes the NE20E-S8A from other NE20E series models?

Accepted Answer

The S8A variant emphasizes high-density 10GE/40GE interfaces, enhanced MPUE1 performance, and DC power support, ideal for carrier-grade aggregation.

	CR2M08BASD13	CR2M16BASA02	CR2M08BASD12	CR2P2EBASA10	CR5D00PSUC71
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / DSL / 4G	Fiber Optic	Fiber Optic / DSL	Fiber Optic / DSL / 4G	N/A
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	IEEE 802.3, CE, FCC	RoHS, FCC, CE	CE, FCC	IEEE 802.3, FCC, CE	IEEE 802.3 / FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	16 inches	17 inches	18 inches	16.0 inches	18.0 inches
Device Type	Router	Router	Router	Router	Router
EMC	FCC / CE	N/A	EN55032, EN61000-6-1	EN 55032, EN 55024	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM	NIM	EHWIC	NIM, SFP+	NIM
Features	VPN / IPv6 Compatible / Firewall / MPLS	VPN, Firewall, IPv6 Compatible, WAN Optimization	VPN, VoIP, IPv6 Compatible, Firewall, MPLS	VPN, Firewall, IPv6 Compatible, POE	VPN / IPv6 Compatible / Firewall / MPLS / Syslog
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Chassis	Rack-mount	Rack-mount	Rack-mount
Height	2 inches	4 inches	2 inches	2.0 inches	3.5 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	Voice, Video	Voice, Video	WAN Optimization
Interface Ports	RJ-45 / SFP	RJ-45, SFP	RJ-45, SFP	RJ-45, SFP	RJ-45 / SFP
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	4 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	2 GB	4 GB	4 GB	2 GB	8 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS	IPv4, IPv6	IPv4, IPv6	IPv4 / IPv6
Power	350 Watt	300W	350 Watt	150W	350W
Power Source	Redundant AC/DC Power Supply	Redundant AC Power Supply	AC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / Redundant
Product Name	CR2M08BASD13 Enterprise Modular Router	CR2M16BASA02 Enterprise Modular Router	CR2M08BASD12 Enterprise Modular Router	CR2P2EBASA10 Enterprise Router	CR5D00PSUC71 Enterprise Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, SNMP	SSH, Telnet, SNMP	SNMP, SSH, HTTPS	SSH, Telnet, SNMP	CLI / SNMP / Web UI
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / MPLS / RIP / Static Routing
Safety	IEC 60950	N/A	Surge Protection, ESD Protection	RoHS, UL	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	TIA/EIA	N/A	N/A	FCC Part 15, CE	N/A
Throughput Capacity	10 Gbps	10 Gbps	10 Gbps	1 Gbps	10 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	20 lbs	30 lbs	15 lbs	6 lbs	25 lbs
Wi-Fi Standard	N/A	N/A	WiFi 6	N/A	N/A
Width	18 inches	17 inches	19 inches	17.5 inches	17.5 inches
Wireless Support	No	No	No	No	No
