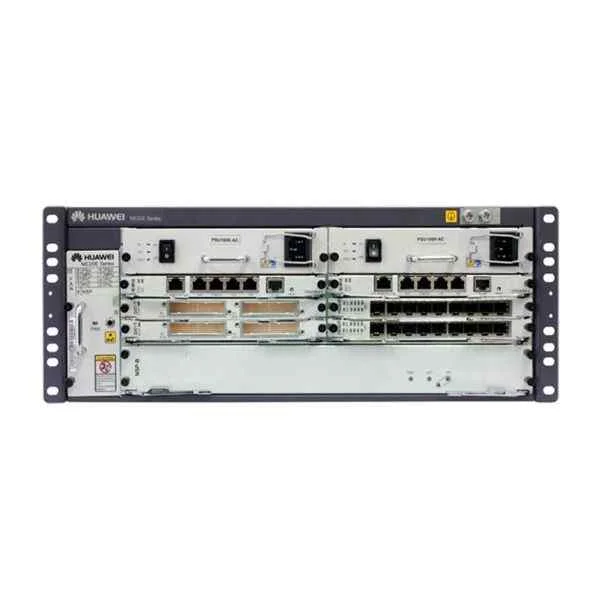

Name: NE20E-S4 DC Basic Configuration Includes NE20E-S 4 Chassis,2*MPUE,2*DC Power,Power cord,without Software Charge and Document
Brand: Huawei
SKU: Huawei NE20E-S4 with 2*MPUE, 2*DC Power (CR2M04BASD02)
Availability: OutOfStock

Question 1

What is Huawei NE20E-S4?

Accepted Answer

Huawei NE20E-S4 is a high-performance fixed enterprise router chassis that delivers carrier-grade routing, advanced Layer 2/3 services, and scalable port expansion in a compact 4-slot form factor.

Question 2

What does the NE20E-S4 DC Basic Configuration include?

Accepted Answer

The NE20E-S4 DC Basic Configuration (CR2M04BASD02) includes one NE20E-S4 chassis, two MPUE line cards, two DC power modules, and a power cord; software licenses and documentation are sold separately.

Question 3

What throughput can I expect from Huawei NE20E-S4?

Accepted Answer

Huawei NE20E-S4 delivers up to 80 Gbps of forwarding capacity and supports up to 20 million concurrent sessions, ensuring low-latency, high-throughput performance for enterprise networks.

Question 4

What are the dimensions and weight of the NE20E-S4 chassis?

Accepted Answer

The NE20E-S4 chassis measures 442 × 350 × 44 mm (W × D × H) and weighs approximately 7.5 kg, making it suitable for standard 19-inch rack installations.

Question 5

What is an MPUE line card in the NE20E-S4?

Accepted Answer

An MPUE (Multi-Purpose Unified Ethernet) line card provides flexible port configuration—supporting GE, 10GE, or 40GE interfaces—to adapt to diverse enterprise connectivity requirements.

Question 6

What type of power supply does the NE20E-S4 use?

Accepted Answer

The NE20E-S4 DC Basic Configuration uses two hot-swappable DC power modules for 36–72 V input, offering redundant power protection and high availability.

Question 7

Can I install additional line cards in the NE20E-S4?

Accepted Answer

Yes. The 4-slot NE20E-S4 chassis allows installation of up to four MPUE or service cards to expand port density and support new protocols as your network grows.

Question 8

Which routing protocols does the NE20E-S4 support?

Accepted Answer

Huawei NE20E-S4 supports a full suite of IPv4/IPv6 routing protocols, including OSPF, ISIS, BGP, RIP, and MPLS, enabling seamless integration into diverse network topologies.

Question 9

What are the ideal use cases for Huawei NE20E-S4?

Accepted Answer

Huawei NE20E-S4 is ideal for enterprise campus cores, data center aggregation, and service provider edge deployments that demand high throughput, reliability, and flexible port options.

Question 10

How many interfaces can the NE20E-S4 support?

Accepted Answer

Depending on the installed MPUE cards, the NE20E-S4 can support up to 48 GE, 24 10GE, or 4 40GE ports, providing versatile interface scalability in a single chassis.

Question 11

How do I install the NE20E-S4 DC Basic Configuration?

Accepted Answer

Mount the 4-slot chassis in a 19″ rack, insert MPUE cards and DC power modules, connect the DC input, and power on; detailed steps are available in the separate installation guide.

Question 12

Are software licenses included with the NE20E-S4?

Accepted Answer

No. The DC Basic Configuration excludes software licenses; routing, MPLS, and security feature licenses must be purchased separately to enable full functionality.

Question 13

What warranty does Huawei provide for NE20E-S4?

Accepted Answer

Huawei offers a standard 1-year hardware warranty for the NE20E-S4, with optional extensions available for up to 5 years of global support and advanced replacement service.

Question 14

How does DC power improve the NE20E-S4’s reliability?

Accepted Answer

Dual hot-swappable DC power modules provide redundancy and reduce single points of failure, ensuring continuous operation even if one power module fails.

Question 15

What cooling mechanism does the NE20E-S4 use?

Accepted Answer

The NE20E-S4 features front-to-back airflow with intelligent fan speed control, optimizing cooling efficiency and reducing noise in data center and enterprise environments.

Question 16

How can I order spare parts for the Huawei NE20E-S4?

Accepted Answer

Spare MPUE cards, DC power modules, and other accessories are available through authorized Huawei distributors or the official Huawei e-store using SKU references.

	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	CR5D00PSUC71	CR2M16BASD13	CR2P2FBASA10	CR2M016FBX12
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	N/A	N/A	Fiber Optic / DSL	Fiber Optic	Fiber Optic
Built-in Security Features	Firewall, Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	CE, FCC, RoHS	IEEE 802.3 / FCC / CE	IEEE 802.3, FCC, CE	FCC, CE	IEEE 802.3, IEEE 802.1Q
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	N/A	18.0 inches	15 inches	17 inches	18 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	FCC Part 15, CE	FCC Part 15, EN 55032	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM, SFP+	NIM	NIM, SFP+	SFP+	NIM / SFP+
Features	VPN, MPLS, IPv6 Compatible, Firewall, Redundancy	VPN / IPv6 Compatible / Firewall / MPLS / Syslog	Mesh, VPN, IPv6 Compatible, Firewall, MPLS	VPN, Firewall, IPv6 Compatible	VPN, Firewall, IPv6 Compatible
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Chassis	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	N/A	3.5 inches	2 inches	4 inches	2 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video	WAN Optimization	Voice, Video	Voice, WAN Optimization	Voice, Video
Interface Ports	RJ-45, SFP	RJ-45 / SFP	RJ-45, SFP+	RJ-45, SFP, SFP+	RJ-45, SFP+
LAN Ports	Modular LAN	4 LAN Ports	8 LAN Ports	4 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	2 GB	8 GB	4 GB	4 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	2 Slots	3+ Slots
Network Protocols	IPv4, IPv6, MPLS, OSPF, BGP	IPv4 / IPv6	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6, MPLS, VPN
Power	240W	350W	350 Watt	250W	250W
Power Source	DC Power Supply / Redundant	AC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / Redundant DC Power Supply	AC Power Supply / DC Power Supply / Redundant
Product Name	Huawei NE20E-S4 with 2MPUE, 2DC Power (CR2M04BASD02)	CR5D00PSUC71 Enterprise Router	CR2M16BASD13 Enterprise Modular Router	CR2P2FBASA10 Enterprise Multifunction Router	CR2M016FBX12 Enterprise Modular Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	Telnet, SSH, SNMP, HTTPS	CLI / SNMP / Web UI	SSH, Telnet, SNMP, HTTPS	SSH, Telnet, HTTPS	SSH, Telnet, HTTPS, SNMP
Routing Protocols	OSPF / BGP / MPLS / Static Routing	OSPF / BGP / EIGRP / MPLS / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / MPLS / Static Routing
Safety	N/A	N/A	UL, CE	EAC, RoHS	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	N/A	TIA/EIA	ITU-T	N/A
Throughput Capacity	80 Gbps	10 Gbps	2 Gbps	10 Gbps	10 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN / GRE	IPSec / SSL VPN / GRE	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	Modular WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	N/A	25 lbs	15 lbs	20 lbs	15 lbs
Wi-Fi Standard	N/A	N/A	WiFi 6e	N/A	N/A
Width	N/A	17.5 inches	17 inches	17 inches	17 inches
Wireless Support	No	No	No	No	No
