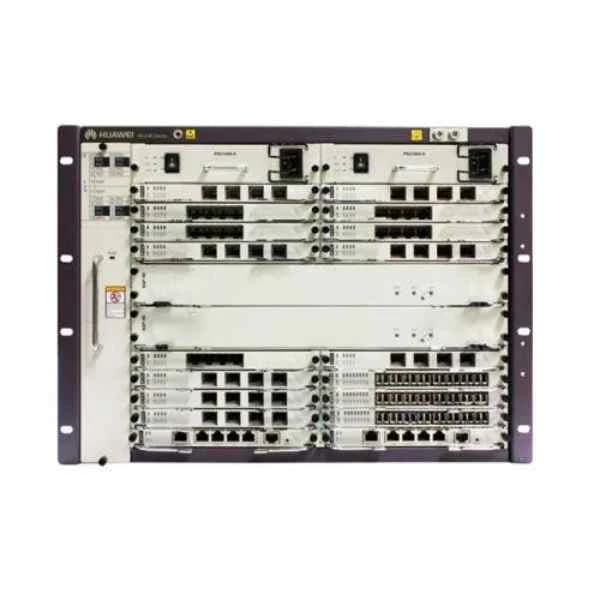

Name: NE20E-S 16 DC Basic Configuration Includes NE20E-S 16 Chassis,2*MPUE,2*DC Power,Power cord,without Software Charge and Document
Brand: Huawei
SKU: CR2M16BASD02
Price: 15466.09 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What does SKU CR2M16BASD02 represent?

Accepted Answer

SKU CR2M16BASD02 designates the NE20E-S 16 DC Basic Configuration bundle, offering a 16-slot chassis with dual MPUE and dual DC power modules plus power cord.

Question 2

What components are included in the NE20E-S 16 DC Basic Configuration?

Accepted Answer

The package includes a NE20E-S 16-slot chassis, 2× MPUE control boards, 2× DC power supplies, and a compatible power cord. Software licenses and printed documentation are not included.

Question 3

What is MPUE in the NE20E-S platform?

Accepted Answer

MPUE stands for Multi-Processor Unified Engine, the control plane module that handles routing, switching functions, and system management in the NE20E-S.

Question 4

Which DC power modules are provided with this configuration?

Accepted Answer

This basic bundle includes two hot-swappable DC power modules rated for –48 V input, ensuring redundant power and continuous operation.

Question 5

Is software or documentation included in the SKU CR2M16BASD02 package?

Accepted Answer

No. The SKU covers only hardware components. Software licences, updates, and printed manuals must be ordered separately or downloaded online.

Question 6

What type of power cord is supplied with the chassis?

Accepted Answer

A standard IEC C13-to-DC input power cord is supplied, compatible with international rack power distribution units.

Question 7

What are the physical dimensions and weight of the NE20E-S 16 chassis?

Accepted Answer

The chassis measures 442 mm (W) × 440 mm (D) × 88 mm (H) and weighs approximately 12 kg without modules or cards.

Question 8

What operating environment does the NE20E-S 16 DC support?

Accepted Answer

It supports an operating temperature of 0 °C to 45 °C, relative humidity of 5%–95% (non-condensing), and altitude up to 5 000 m.

Question 9

What is the forwarding capacity of the NE20E-S 16 DC chassis?

Accepted Answer

Fully equipped, the chassis delivers up to 640 Gbps aggregate throughput, supporting high-performance routing and switching.

Question 10

Can I expand the NE20E-S 16 DC chassis after initial deployment?

Accepted Answer

Yes. The 16-slot design allows installation of additional line cards, service modules, or higher-capacity power supplies as network demands grow.

Question 11

Which line cards and interface modules are compatible?

Accepted Answer

The NE20E-S supports all NE-series line cards, including 10GE, 40GE, and 100GE ports, plus specialized MPLS, security, and service acceleration modules.

Question 12

What is the recommended installation procedure for this chassis?

Accepted Answer

Rack-mount the chassis in a standard 19-inch cabinet, secure with screws, insert MPUE and power modules, connect DC power, then install and provision line cards.

Question 13

What DC voltage input is required?

Accepted Answer

Each power module accepts –40 V to –72 V DC input, with a typical operational range of –48 V for carrier-grade reliability.

Question 14

Is there a warranty or support plan available?

Accepted Answer

Huawei offers a one-year limited hardware warranty. Extended support and advanced replacement services can be purchased separately.

Question 15

Where can I obtain software and user documentation?

Accepted Answer

Download the latest firmware, software packages, and user guides from the Huawei Support website using your product serial number.

Question 16

How are software features and licenses managed on NE20E-S?

Accepted Answer

Software features are enabled via license keys issued by Huawei. Keys unlock advanced routing protocols, MPLS, security, and other premium functions.

	CR2M16BASD02	CR2M08BASD13	CR2M16BASA12	CR2P2EBASA10	Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02)
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic	Fiber Optic / DSL / 4G	Fiber Optic	Fiber Optic / DSL / 4G	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	FCC, CE, RoHS	IEEE 802.3, CE, FCC	FCC / CE / RoHS	IEEE 802.3, FCC, CE	FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	14 inches	16 inches	18 inches	16.0 inches	N/A
Device Type	Router	Router	Router	Router	Router
EMC	N/A	FCC / CE	FCC Part 15 / CE	EN 55032, EN 55024	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM	NIM	SFP+	NIM, SFP+	NIM / SM-X / SFP+
Features	VPN, IPv6 Compatible, Firewall, MPLS, Syslog	VPN / IPv6 Compatible / Firewall / MPLS	VPN / IPv6 Compatible / Firewall / MPLS / Syslog	VPN, Firewall, IPv6 Compatible, POE	VPN / IPv6 Compatible / Firewall / High Availability
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	N/A
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Chassis
Height	2 inches	2 inches	1.8 inches	2.0 inches	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	Voice / Video	Voice, Video	Voice / Video / WAN Optimization
Interface Ports	RJ-45, SFP+	RJ-45 / SFP	RJ-45 / SFP+	RJ-45, SFP	RJ-45 / SFP / SFP+
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	Modular LAN
Management	Managed	Managed	Managed	Managed	Managed
Memory	2 GB	2 GB	4 GB	2 GB	N/A
Modular Slots Available	2 Slots	3+ Slots	2 Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6, MPLS, VPN	IPv4, IPv6, MPLS	IPv4 / IPv6 / MPLS	IPv4, IPv6	OSPF, BGP, RIP, Static Routing
Power	350 Watt	350 Watt	120W	150W	N/A
Power Source	Redundant Power Supply	Redundant AC/DC Power Supply	AC/DC Powered with Redundant Options	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / Redundant
Product Name	CR2M16BASD02 Integrated Modular Enterprise Router	CR2M08BASD13 Enterprise Modular Router	CR2M16BASA12	CR2P2EBASA10 Enterprise Router	Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02)
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, HTTPS, SNMP	SSH, Telnet, SNMP	SSH / HTTPS / SNMP	SSH, Telnet, SNMP	Telnet, SSH, SNMP
Routing Protocols	OSPF / BGP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / Static Routing
Safety	N/A	IEC 60950	UL Listed	RoHS, UL	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	TIA/EIA	ETSI	FCC Part 15, CE	N/A
Throughput Capacity	1 Gbps	10 Gbps	1.5 Gbps	1 Gbps	N/A
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	Modular WAN
Weight	15 lbs	20 lbs	15 lbs	6 lbs	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	17 inches	18 inches	17.5 inches	17.5 inches	N/A
Wireless Support	No	No	No	No	No
