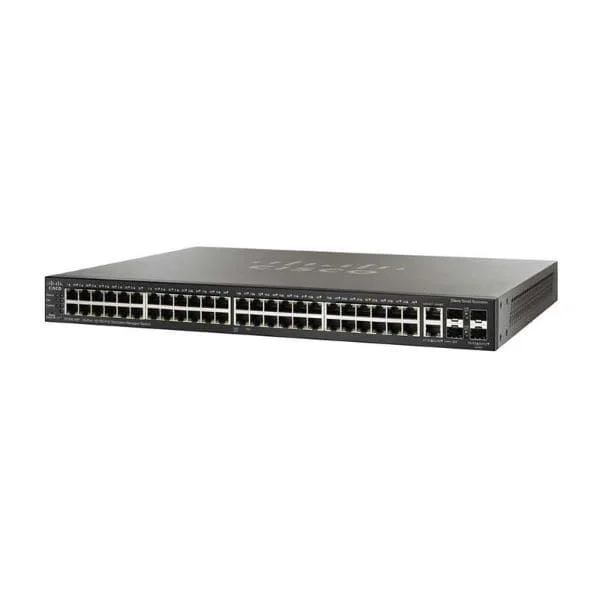

Name: SF300-48
Brand: Cisco
Availability: InStock

Overview Of SF300-48

The Cisco 300 series SF300-48 managed switches are designed to offer small to medium-sized businesses a reliable and efficient networking solution. These switches provide essential features for improving network performance, security, and reliability while offering easy management and scalability. The SF300-48 switch delivers high-performance switching with a non-blocking architecture, ensuring smooth data flow even during peak traffic times. With a forwarding rate of up to 13.1 Mpps (million packets per second), it can handle demanding workloads efficiently. This model comes equipped with 48 Ethernet ports, allowing for extensive connectivity options for various devices such as computers, printers, IP phones, access points, and more. Additionally, 2 combo mini-GBIC (SFP) ports provide fiber connectivity for uplinking to other switches or network devices. The SF300-48 supports Layer 2 switching capabilities, enabling it to segment the network, optimize traffic, and enhance overall performance.

Specification Of SF300-48

SF300-48 Datasheet

Device Type	Switch €“ 48 ports €“ L3 €“ Managed
Enclosure Type	Desktop, rack-mountable €“ 1U
Ports	48 x 10/100 + 2 x coMBo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)	Not Available
Switching capacity	17.6 Gbps
Forwarding performance (64-byte packet size)	13.1 Mpps
MAC Address Table Size	16K entries
Active VLANs	4K
Routing Protocol	Static IPv4 routing
JuMBo FRAMe Support	10KB
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
RAM	128 MB
Flash Memory	16 MB flash
Status Indicators	Link activity, port transmission speed, system
Interfaces	48 x 10Base-T/100Base-TX €“ RJ-45 ¦ 1 x console €“ 9 pin D-Sub (DB-9) €“ management ¦ 4 x 10Base-T/100Base-TX/1000Base-T €“ RJ-45 ¦ 2 x SFP (mini-GBIC)
Power Device	Power supply €“ internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
MTBF	199,664 hour(s)
Width	17.3 in
Depth	13.8 in
Height	1.5 in
Weight	7.5 lbs
