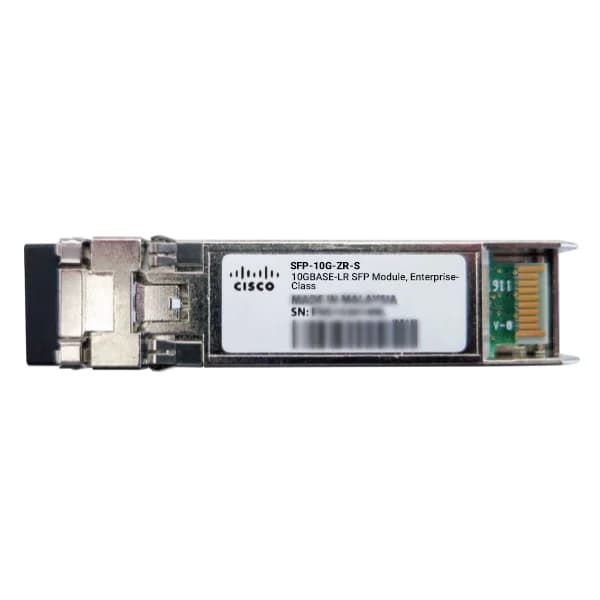

Name: 10GBASE-ZR SFP Module, Enterprise-Class
Brand: Cisco
SKU: SFP-10G-ZR-S
Price: 130.43 USD
Availability: InStock

Question 1

What is the SFP-10G-ZR-S 10GBASE-ZR SFP Module?

Accepted Answer

The SFP-10G-ZR-S is an enterprise-class 10G SFP+ transceiver designed for ultra-long-reach single-mode fiber networks, delivering up to 80 km of data transmission at 1550 nm.

Question 2

What maximum transmission distance does the SFP-10G-ZR-S support?

Accepted Answer

With a 1550 nm wavelength and high optical output, the SFP-10G-ZR-S reliably transmits up to 80 km over standard G.652 single-mode fiber.

Question 3

Which fiber type is required for this module?

Accepted Answer

This module requires G.652-compliant single-mode fiber (SMF) to achieve its rated 80 km reach and maintain signal integrity.

Question 4

Is the module compatible with all SFP+ ports?

Accepted Answer

Yes. The SFP-10G-ZR-S conforms to the SFP+ MSA standard and works with any switch, router, or NIC that accepts standard 10G SFP+ transceivers.

Question 5

What is the module’s optical output power?

Accepted Answer

The SFP-10G-ZR-S delivers a minimum optical launch power of +3 dBm, ensuring sufficient signal strength for ultra-long-reach links.

Question 6

What is the receiver sensitivity of the SFP-10G-ZR-S?

Accepted Answer

Receiver sensitivity is –24 dBm, providing a power budget of at least 27 dB for stable 10 Gbps transmission over long distances.

Question 7

Does the SFP-10G-ZR-S support Digital Optical Monitoring (DOM)?

Accepted Answer

Yes. It features SFF-8472 compliant DOM for real-time monitoring of optical power, temperature, voltage, and laser bias current through the host interface.

Question 8

What temperature range can the module operate in?

Accepted Answer

The module operates reliably between 0 °C and 70 °C (commercial) and between –40 °C and 85 °C (industrial) for harsh-environment deployments.

Question 9

Is the SFP-10G-ZR-S hot-swappable?

Accepted Answer

Yes. It supports hot-swapping, allowing installation or removal without powering down the host device or disrupting network traffic.

Question 10

What applications are ideal for this module?

Accepted Answer

Ideal for data center interconnects, metro Ethernet, service provider backbones, and disaster-recovery networks requiring 80 km 10 Gbps links.

Question 11

Which protocols does the SFP-10G-ZR-S support?

Accepted Answer

It supports IEEE 802.3ae 10GBASE-ZR, Fibre Channel up to 10 Gbps, and SONET OC-192/SDH STM-64 applications.

Question 12

How do I install the SFP-10G-ZR-S module?

Accepted Answer

Insert the module into a compatible SFP+ slot until it clicks, connect LC single-mode fiber cables, and verify link status via the host CLI or GUI.

Question 13

What is the typical power consumption?

Accepted Answer

The SFP-10G-ZR-S draws ≤3.5 W, ensuring low power consumption for energy-efficient, high-density network deployments.

Question 14

Is this module multi-vendor compatible?

Accepted Answer

Yes. It undergoes rigorous interoperability testing with leading switch and router platforms to guarantee plug-and-play performance.

Question 15

What warranty and support are included?

Accepted Answer

The module comes with a lifetime warranty, free advanced replacement, and 24/7 technical support for rapid issue resolution.

Question 16

How do I verify the module’s performance in my network?

Accepted Answer

Use the host’s built-in DOM interface or Ethernet switch diagnostic commands to monitor real-time optical power, attenuation, and link status.

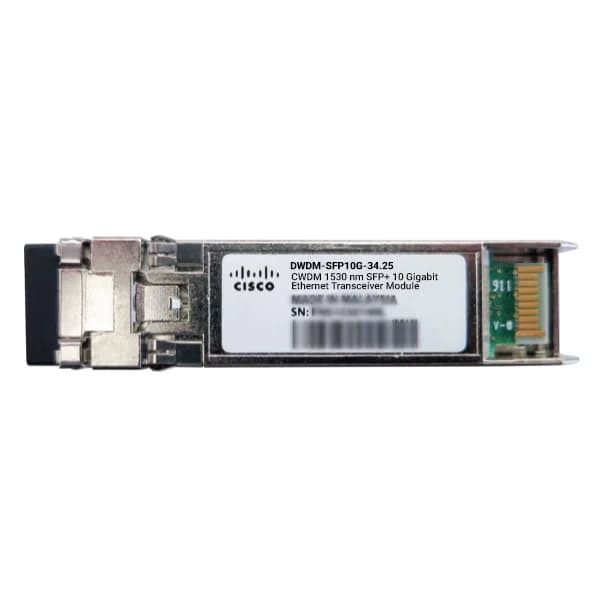

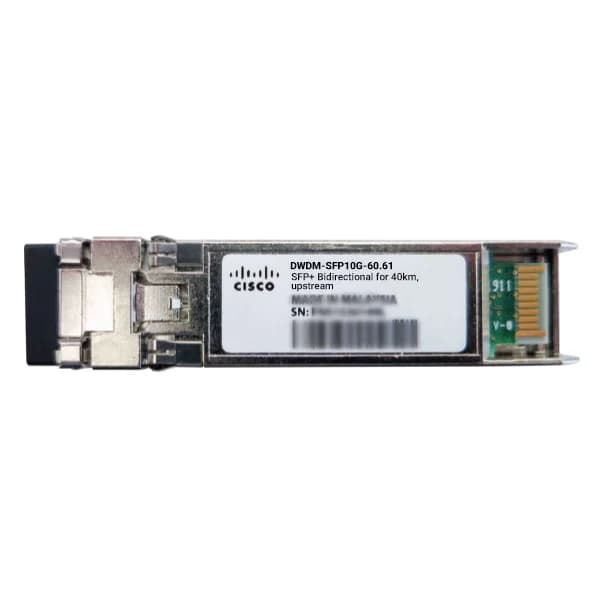

	SFP-10G-ZR-S	SFP-10G-LR-S	DWDM-SFP10G-34.25	DWDM-SFP10G-60.61	DWDM-SFP10G-38.19
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Connector Type	LC	LC	LC	LC	LC
Data Rate	10G	10G	10G	10G	10G
Depth	3.40 inches	1.50 inches	1.8 in	0.33 inches	3.63 inches
Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode	Single-mode
Form Factor	SFP+	SFP+	SFP+	SFP+	SFP
Height	0.65 inches	0.65 inches	0.7 in	0.5 inches	0.67 inches
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Max Distance	80 km	10 km	80 km	80 km	80 km
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	1.5 W	1.5W	1.5W	2.5 W	3.5W
Product Name	SFP-10G-ZR-S	SFP-10G-LR-S	DWDM-SFP10G-34.25	DWDM-SFP10G-60.61	DWDM-SFP10G-38.19
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet	Ethernet
Transmission Distance	Long-Range	Long-Range	Long-Range	Extended-Range	Long-Range
Wavelength	1310nm	1310nm	1550 nm	1550.61 nm	1550 nm
Weight	0.2 lbs	0.08 lbs	0.07 lbs	0.04 lbs	0.31 lbs
Width	0.87 inches	0.40 inches	0.7 in	2.2 inches	0.94 inches

SFP-10G-ZR-S

$5,000,000+

Officially Accredited

Next-Gen IT

SFP-10G-ZR-S Overview

SFP-10G-ZR-S Specifications

SFP-10G-ZR-S Use Case

High-Performance Data Center Interconnect for Enterprise Continuity

Metro Ethernet Service Delivery for Telecommunications Providers

Secure Cloud-On-Ramp Connectivity for Large-Scale Enterprises

Quality Certifications

Product Comparison Table

Reviews & Ratings

Questions & Answers
