IE-2000-4S-TS-G-L
Cisco IE-2000-4S-TS-G-L Industrial Ethernet 2000 4-Port Fast...
Trusted by the Highest-Stakes Buyers
Federal agencies and Fortune 500 operations source through ORM Systems.
US Government & Defense
Enterprise Clients
Built Global. Stocked Local.
Regional teams and 25+ distribution partners keep stock near you and accountability in your time zone.
Buyer Protection on Every Order
Pay by PayPal or Revolut with full chargeback rights. Order on PO terms, Net-30 for government.
Verified By Federal Bodies
Every registration we claim is public record — check our federal contractor status yourself before you spend a dollar.
Since 2016, Enterprise-Trusted
Ten years serving buyers who audit their vendors. From federal agencies to 20,000+ enterprise clients worldwide.

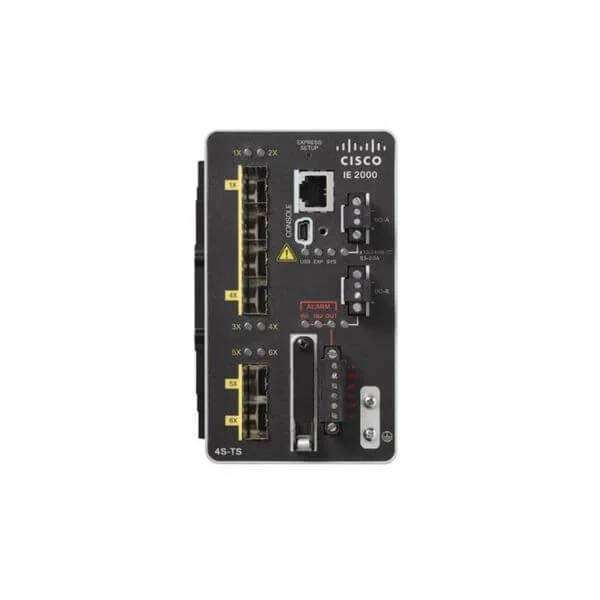

IE-2000-4S-TS-G-L provides all-SFP industrial access with four 100 Mbps downlinks and two fixed Gigabit Ethernet uplinks. This managed Layer 2 switch ships with LAN Lite and has no built-in copper Ethernet access ports or PoE output. Its DIN rail chassis belongs to the Industrial Ethernet 2000 family and serves fiber-connected industrial networks rather than conventional copper endpoint access. The six cages accept transceivers rather than removable uplink cards. The discontinued IE-2000-4S-TS-G-B retains the same physical port arrangement but carries LAN Base, making the software entitlement the distinction between these two configurations. Confirm the required image when matching an existing installation.
IE-2000-4S-TS-G-L price for new stock is $485.10, a 70.4% saving from the Cisco list price of $1,638.00. IE-2000-4S-TS-G-L refurb price is $688.59. IE-2000-4S-TS-G-L is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for IE-2000-4S-TS-G-L for additional pricing. Browse the full Cisco IE 2000 Industrial Ethernet Switches series or explore all Cisco products.
7.6 Gbps maximum switching bandwidth and 5.66 Mpps maximum forwarding rate describe the forwarding resources available for traffic assessment. An 8000-entry MAC table supports address learning, while the 2 MB egress buffer handles queued traffic. IE-2000-4S-TS-G-L carries 256 MB DRAM and 64 MB onboard flash for its operating image and configuration. LAN Lite includes REP, IGMP snooping, SSH and SNMPv3; IP routing is not part of the supplied feature set. Cisco IOS supplies the command environment, with remote and local management options available for commissioning. Keep the intended management method separate from the application traffic carried through the SFP interfaces.
IE-2000-4S-TS-G-L is offered new sealed or certified refurbished; specify the condition and required accessories on the purchase order. Certified refurbished IE2000 units are inspected and bench-tested for power-on and POST, clean boot, every port linking at rated speed and optics bay recognition, with firmware verified and configuration wiped to factory default. New units carry up to a three-year extended ORM warranty, certified refurbished units carry up to one year, and every condition includes 30-day returns, terms apply. For enterprise and volume orders, PO acceptance, Net-30 for government and RMA with advance replacement are available, with regional stock/RMA across the UK, EU, US and MEA.
| Key Specs | Key Spec Values |
|---|---|
Operating System | Cisco IOS |
License Tier | LAN Lite |
Port Configuration | 4 x 100M SFP, 2 x 1G SFP |
Max Power Draw | 18W |
Lifecycle Status | End of sale July 26, 2024 |
Replacement PID | IE-3100-8T4S-E |
When a spare must reproduce an existing configuration, optional SD-IE-1GB= storage can retain software and configuration changes for transfer to a replacement unit. Treat the removable card as a separate purchase item rather than an included accessory, and specify the card on the staging purchase order.
When several industrial cabinets need consistent external fault monitoring, the two dry-contact alarm inputs and single alarm output relay provide connections for local alarm circuits. Agree which cabinet conditions will use those contacts, identify the required wiring, and include the alarm integration requirements before releasing the purchase order.
When an enclosure is being populated or rearranged, chassis dimensions alone do not establish the installation envelope. The switch requires 50.8 mm clearance above, below, at the sides and in front. Reserve that space alongside cable access and power wiring before approving the cabinet layout and equipment order.
Gigabit fiber access on every downlink
Four downlinks stop at 100 Mbps. IE-3100-8T4S-E offers four Gigabit SFP ports, but also adds eight Gigabit copper ports and changes the port arrangement.
IP routing with the supplied license
IE-2000-4S-TS-G-L supplies LAN Lite switching. IPv4 static routing belongs to LAN Base, while RIP, OSPF and EIGRP belong to IP Lite rather than this supplied image.
Direct connection to AC mains
IE-2000-4S-TS-G-L receives DC through terminal connections, not direct AC mains. Specify external PWR-IE50W-AC= conversion when the installation requires an AC-powered supply arrangement.
Mon–Fri: [09:00-16:00]
Avg. response under 30 mins
| IE-2000-4S-TS-G-L |  IE-2000-16TC-B |  IE-2000-16TC-L |  IE-2000-8TC-G-L |  IE-2000-16TC-G-X | |
|---|---|---|---|---|---|
| Ethernet Technology | Fast Ethernet | Fast Ethernet | Fast Ethernet | Fast Ethernet | Fast Ethernet |
| Flash Memory | 64 MB | 64 MB | 64 MB | 64 MB | 64 MB |
| Form Factor | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount |
| Height | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Manufacturer Part Number | IE-2000-4S-TS-G-L | IE-2000-16TC-B | IE-2000-16TC-L | IE-2000-8TC-G-L | IE-2000-16TC-G-X |
| Memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Power Consumption | 18W. | 30W | 30W | 20W | 30W |
| SFP Ports | 4 x 100Mbps / 2 x 1GbE | 2 x 100Mb/s / 2 x 100Mb/s (Combo, shared with RJ-45) | 2 x 100Mbps / 2 x 100Mbps (Combo, shared with RJ-45) | 2 x 1GbE (Combo, shared with RJ-45) | 2 x 100MbE / 2 x 1GbE (Combo, shared with RJ-45) |
| Width | 80 mm | 127 mm | 127 mm | 91.4 mm | 127 mm |
Every unit is authentic, sourced through trusted and authorised channels, and serial-verified on request. Genuine networking and IT hardware, guaranteed, or your money back.
New products are backed by up to 3 years of extended warranty, and certified refurbished units by up to 3 months, for dependable protection on every order. Coverage is clear, honoured in full, and confirmed on each product page.
If a unit ever falls short, our streamlined RMA process gets a replacement to you fast, with advance replacement available to keep your network running. No jargon, no runaround.
Every device is inspected, bench-tested, and firmware-verified, with configurations wiped before dispatch. Additional testing can be arranged to confirm full working condition on request.
Our specialists assist with compatibility, configuration, licensing, and installation, before and after you buy. Real hardware expertise, whenever you need it.
dispatched quickly and shipped worldwide from regional hubs, fully tracked and insured.
Reviewed on the 25 February 2026
IE-2000-4S-TS-G-L ensures stable fiber connectivity and reliable industrial uptime.
Reviewed on the 18 June 2025
Great performance for industrial fiber uplinks.
Reviewed on the 22 June 2020
Consistent switching and durable construction.
Reviewed on the 1 April 2019
Reliable solution for edge industrial networks.
Reviewed on the 15 June 2024
IE-2000-4S-TS-G-L handles demanding environments well.
Reviewed on the 6 September 2022
Solid LAN Lite performance and dependable connectivity.
IE-2000-4S-TS-G-L identifies an Industrial Ethernet 2000 configuration with four Fast Ethernet SFP ports, two Gigabit Ethernet SFP ports and LAN Lite. IE-2000 identifies the family, 4S corresponds to the four SFP access ports, TS-G accompanies the Gigabit SFP uplink configuration, and L identifies LAN Lite.
IE-2000-4S-TS-G-L supports Web Device Manager, Cisco IOS CLI through SSH or Telnet, RJ-45 or USB console, SNMP, Cisco Network Assistant, Cisco Prime Infrastructure/LMS, Cisco Catalyst Center, CIP tools and PROFINET tools such as STEP 7. Specify the required management method and entitlement during commissioning planning.
Yes, IE-2000-4S-TS-G-L reached end of sale on July 26, 2024, with final Cisco support ending July 31, 2029 for eligible coverage. Reseller stock does not restart these milestones. Include the remaining support period in a spare-stock decision rather than treating a sealed unit as a newly introduced product.
IE-2000-4S-TS-G-L is available new sealed or certified refurbished. ORM warranties are up to three years extended for new units and up to one year for certified refurbished units; both include 30-day returns, terms apply. Cisco's five-year limited hardware warranty is subject to eligibility and ends no later than July 31, 2029.
IE-2000-4S-TS-G-L ships with LAN Lite; separate Cisco Catalyst Center Essentials management terms are three, five or seven years, with three years the minimum. Catalyst Center Advantage is unavailable for this family. Distinguish the supplied network feature set from any management entitlement requested on the purchase order.
The Industrial Ethernet 2000 fiber configuration supports GLC-FE-100LX-RGD for 100 Mbps single-mode access and GLC-LX-SM-RGD= for Gigabit single-mode uplinks, each supporting 10 km single-mode links. Specify the optic for each connection rather than treating all six SFP cages as having the same speed or link requirements.
IE-2000-4S-TS-G-L uses front-panel DC-A and DC-B power connections and can operate from one or two external sources. PWR-IE50W-AC= provides an external AC-to-DC supply option. For a dual-source installation, specify independent feeds and the associated wiring rather than connecting both inputs to the same upstream circuit.
No, IE-2000-4S-TS-G-L does not provide IP routing with its supplied LAN Lite image. LAN Base adds IPv4 static routing, while IP Lite adds dynamic routing features. An order intended to preserve the original LAN Lite configuration should retain an external routing function wherever IP networks need interconnection.
The Industrial Ethernet 2000 switch mounts on a DIN rail using its rear latch; Wallmount-IE2k-04= is the wall-mount accessory for the four-downlink configuration. Identify the actual mounting surface before ordering accessories, and allow access to the front power terminals, alarm wiring and optical connections in the enclosure layout.
IE-2000-4S-TS-G-L carries LAN Lite, whereas IE-2000-4S-TS-G-B carries LAN Base with additional features including IPv4 static routing. Their physical SFP arrangements match, and both are discontinued. The LAN Lite model suits image-matched replacement orders; the LAN Base model suits existing installations that require its additional licensed functions.
IE-2000-16PTC-G-L provides four PoE-capable copper ports, whereas IE-2000-4S-TS-G-L has no PoE output. The discontinued PoE model also uses a larger copper-access configuration, so it is not a like-for-like fiber replacement. Existing powered-copper installations and all-SFP installations require different spare-stock selections and associated power arrangements.
IE-3100-8T4S-E has eight Gigabit copper ports and four Gigabit SFP ports, whereas IE-2000-4S-TS-G-L has four Fast Ethernet SFP downlinks and two Gigabit SFP uplinks. IE-3100-8T4S-E is the replacement model. Choose between preserving the installed fiber arrangement and redesigning connections for the replacement's mixed-media layout.
