FG-100E-BDL

FG-100E-BDL Specification

Type

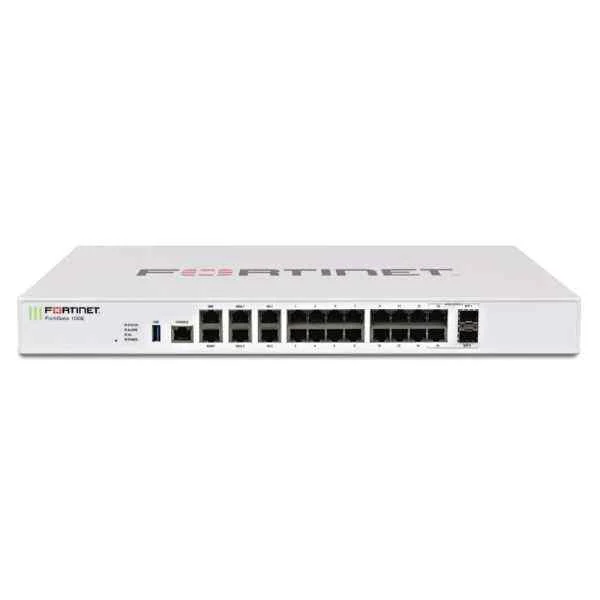

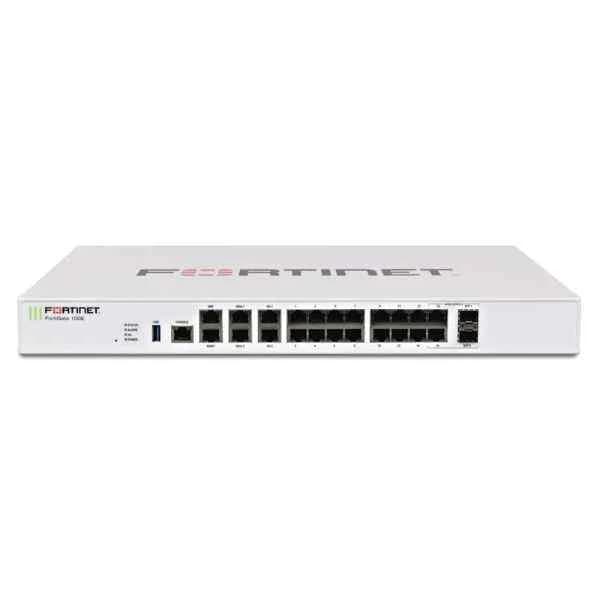

Fortinet FG-100E Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle

Interfaces and Modules

GE RJ45 Ports

14

GE RJ45 Management/HA/DMZ Ports

1 / 2 / 1

GE SFP Slots

€”

GE RJ45 PoE/+ Ports

€”

GE RJ45 WAN Ports

2

GE RJ45 or SFP Shared Ports

2

USB Port

1

Console Port

1

Internal Storage

€”

Included Transceivers

0

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte, UDP)

7.4 / 7.4 / 4.4 Gbps

Firewall Latency (64 byte, UDP)

3 μs

Firewall Throughput (Packet per Second)

6.6 Mpps

Concurrent Sessions (TCP)

2 Million

New Sessions/Second (TCP)

30,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

4 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

10,000

SSL-VPN Throughput

250 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

500

SSL Inspection Throughput (IPS, avg. HTTPS)

130 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)

130

Application Control Throughput (HTTP 64K)

1 Gbps

CAPWAP Throughput (1444 byte, UDP)

1.5 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

24

Maximum Number of FortiAPs (Total / Tunnel)

64 / 32

Maximum Number of FortiTokens

5,000

Maximum Number of Registered FortiClients

600

High Availability Configurations

Active / Active, Active / Passive, Clustering

System Performance €” Enterprise Traffic Mix

IPS Throughput

500 Mbps

NGFW Throughput

360 Mbps

Threat Protection Throughput

250 Mbps

Dimensions and Power

Height x Width x Length

1.75 x 17 x 10 inches

44.45 x 432 x 254 mm

Form Factor

Rack Mount, 1 RU

AC Power Supply

100€“240V AC, 60€“50 Hz

Power Consumption (Average / Maximum)

23.0 W / 25.5 W

Heat Dissipation

87.0 BTU/h

Operating Environment and Certifications

Operating Temperature

32€“104°F (0€“40°C)

Storage Temperature

-31€“158°F (-35€“70°C)

Humidity

10€“90% non-condensing

Noise Level

40.4 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
