C1300-24P-4G

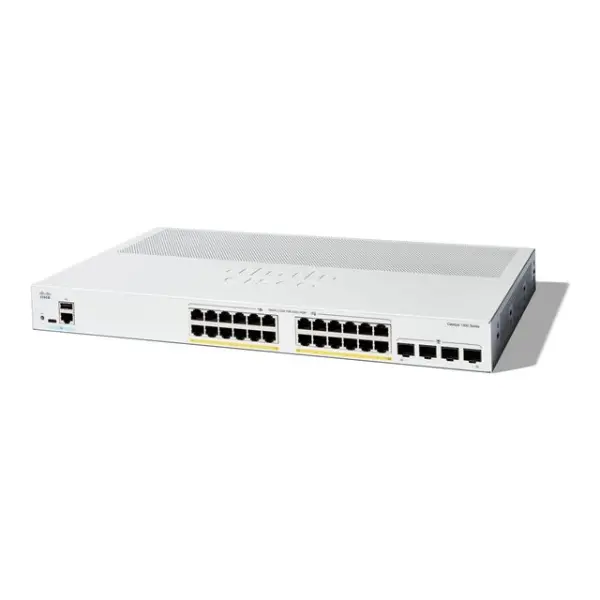

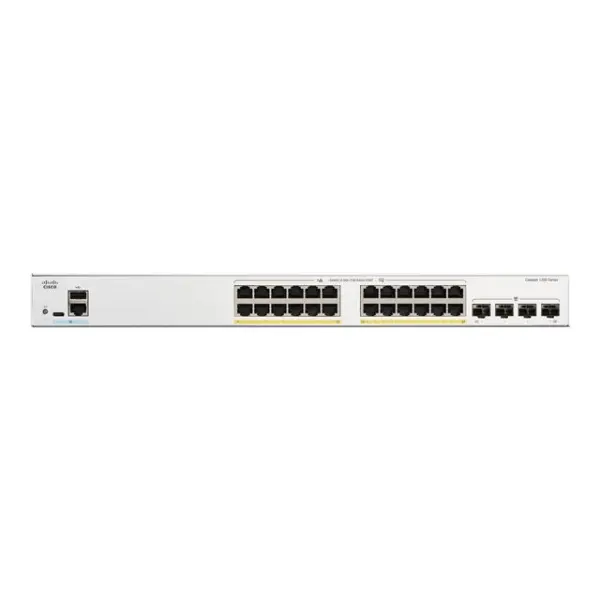

C1300-24P-4G is a fanless Cisco managed Layer 3 access switch built around 24 10/100/1000 PoE+ copper ports, four fixed 1G SFP uplinks, and a 195W shared PoE budget. The rack-mountable 1U platform fits branch and SMB wiring closets that need powered endpoint access with fiber handoff rather than modular uplink bays. It belongs to the Cisco Catalyst 1300 Series, a fixed managed switch family for secure office and branch networks. Because the SFP uplinks are built in, the listed uplink capacity is present in the base chassis and does not depend on a separately ordered network module. The 24-port PoE model targets access closets where the copper edge needs power and the northbound links remain Gigabit. A close sibling, C1300-24FP-4G, keeps the same 24 PoE+ access ports and four 1G SFP uplinks but raises the PoE budget to 370W.

56 Gbps switching capacity delivers wire-speed, nonblocking forwarding across the fixed Gigabit access and uplink ports. 41.67 Mpps forwarding rate supports routed and switched traffic across VLAN access designs without moving the platform into a high-density aggregation role. 195W PoE budget powers a mixed endpoint set across 24 IEEE 802.3af/802.3at ports, so engineers allocate power by device class instead of assuming every port draws 30W at once. RIP v2, IPv4 routing, IPv6 routing, policy-based routing, DHCP relay, STP/RSTP/MSTP, and LACP place routing control, loop prevention, and link aggregation at the access edge. C1300-24P-4G carries 1 GB DDR4 DRAM, 1 GB SLC flash, a 1.5 MB shared packet buffer, and an ARM dual-core 1.5 GHz CPU. A 16000-entry MAC table and jumbo frames up to 9000 bytes support normal access-layer segmentation and larger frame designs. Management access spans Cisco Business Dashboard, web GUI, CLI, SNMP, SSH, HTTPS, syslog, sFlow, a RJ-45 console port, and USB Type-C console access.

C1300-24P-4G fits the enterprise access, branch office, and SMB edge tier where IP phones, workstations, printers, cameras, and wireless access points terminate on powered Gigabit copper. Stacking is not supported on this model, so expansion uses additional managed switches, uplink trunks, and LACP-based handoff rather than one hardware stack. The 1U rack format places the switch in standard access racks, and the -5°C to 50°C operating range suits controlled indoor closets. ORM Systems supplies this model new and certified refurbished, and refurbished units are tested for RJ-45 link status, PoE delivery, SFP recognition, management login, and physical condition before dispatch. Request current pricing for the exact Cisco SKU, required condition, and delivery location. Batch orders group serial capture, accessory checks, and dispatch scheduling for staged access closet rollouts. Volume quotations align unit condition, warranty term, accessories, and delivery scheduling across repeated access closet rollouts.
